13/11/2024

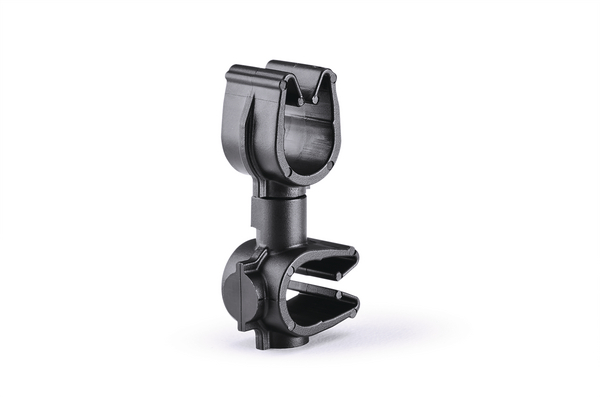

Cable clip with pipe/tube holder, Dmin=7.0mm, Dmax=9.0mm, nom∅=8.0 mm, nom∅2=8.0 mm
Art.-No. 156-01999 | MOC8FMOC8M180-PA66HIRHSUV-BK |  세부

Colour Black (BK)
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION MOC8FMOC8M180-PA66HIRHSUV-BK
Pack Content 2000
Package Content packed in carton
Type MOC8FMOC8M180
Variant Clip to Clip Transverse
Bundle Diameter Nom. (ND) 8.0 mm
Bundle Diameter Nom. 2 (ND2) 8.0 mm
Bundle Diameter max (metric) 9.0mm
Bundle ∅ 2 max. 9.0mm
Bundle ∅ 2 min. 7.0mm
Bundle ∅ min. 7.0mm
Depth (D) 10.0mm
Height (H) 15.2mm
Length (L) 33.55mm
Length (L2) 18.4mm
CE Certification No
CSA Certified No
Flammability UL 94 HB
Halogen-free Yes
Operating Temperature -40 °C to +110 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised Yes
GTIN-13 / EAN 4031026716275
Packaging 1 - Weight (kg) 201.54kg
UNSPSC Key 39121702
Art.-No.: 156-01999 세부 문의
