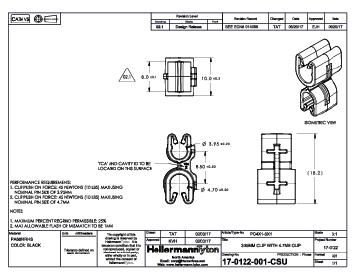

Cable clip, nom∅=4.2 mm, nom∅2=5.1 mm
Art.-No. 151-02451 | PC4X1-5X1-PA66HIRHSUV-BK 세부

Colour Black (BK)
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION PC4X1-5X1-PA66HIRHSUV-BK
Pack Content 10000pcs.
Package Content packed in bag
Type PC4X1-5X1
Bundle Diameter Nom. (ND) 4.2 mm
Bundle Diameter Nom. 2 (ND2) 5.1 mm
Depth (D) 10.0mm
Diameter (D) 4.7mm
Height (H) 18.2mm
Length (L) 8.2mm
∅ (D2) 3.95mm
∅ D 0.185"
∅ D2 0.156"
CE Certification No
CSA Certified No
Flammability UL 94 HB
Halogen-free Yes
Operating Temperature -40 °C to +110 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised Yes
GTIN-13 / EAN 4031026715162
Packaging 3 - Height (m) 0.1603502m
Packaging 3 - Length (m) 0.5159502m
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0282
Packaging 3 - Width (m) 0.3413252m
UNSPSC Key 39121702
