Blind plug, ∅6.1 - 6.9 mm/6.1 - 6.6 mm (hexagonal), T=0.6-5.0mm, black, 1000pcs.
Art.-No. 151-03327 | PLUGSFT6PT1.5-3.0-POM-BK | 세부

Blindplugs are available in different dimensions and materials.

Easy assembly without the need of a tool
Disc of the part covers the hole and minimises ingress of dust, dirt and water

Base Data

Application	Our Blind Plugs were developed especially for the automotive industry. Application in trunks, doors, wheel housing and dash panels. Whenever needed to secure a hole against dirt or dust. Sometimes even used for optical reasons.
Colour	Black (BK)
Material	Polyacetal (POM)
PART DESCRIPTION	PLUGSFT6PT1.5-3.0-POM-BK
Pack Content	1000pcs.
Package Content packed in	bag
Type	PLUGSFT6PT1.5-3.0

Product Dimensions

Height (H)	18.3mm
Length (L)	16.6mm
Panel Thickness max.	0.6-5.0mm
Width (W)	16.6mm
for Hole ∅ (FH)	6.1 - 6.9 mm, 6.1 - 6.6 mm (hexagonal)
for Panel Thickness min - max	0.6 - 5 mm

Downloads

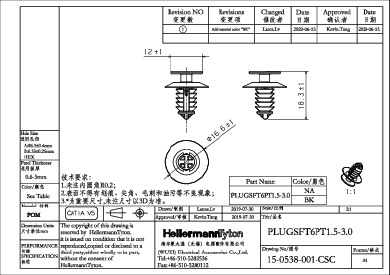

Technical drawing 15-0538-001-CSC

다운로드

Specifications

Operating Temperature

-40 °C to +90 °C, (+110 °C, 500 h)

Logistics and Packaging

GTIN-13 / EAN

4031026651231

More Information

UNSPSC Key

39121702
