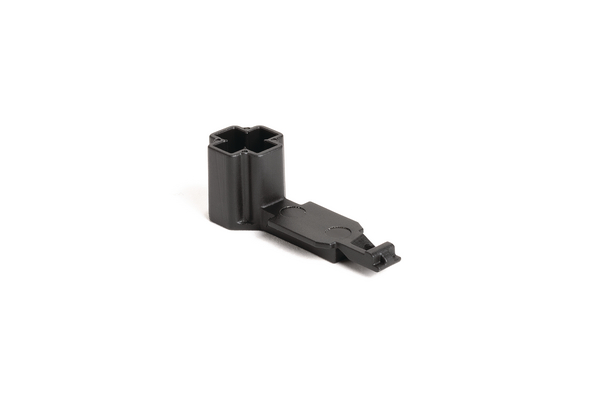

Connector clip, black, 4000Carton
Art.-No. 151-02886 | SB5-6CC11-PA66HIRHSUV-BK | 세부

For use with weld studs.

Connector easily installed by simply pushing into place
Connection can be released (non-destructive)
Soft-push design for tool free installation

More products in this product group:

Connector clips for weld studs >

Base Data

Application	The Connector clips used here have been designed for electronic cables and cable sets used in the automotive industry. The Connector Clips are related to a Connector and then secured to a surface depending on the requirement.
Colour	Black (BK)
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION	SB5-6CC11-PA66HIRHSUV-BK
Pack Content	4000Carton
Package Content packed in	carton
Product Family	Soft-push design
Product Group	Connector clips for weld studs
Type	SB5-6CC11
Variant	5 mm/6 mm Threaded Stud

Product Dimensions

Height (H)	15.0mm
Length (L)	42.93mm
Stud ∅	0.20 " 0.24"
Stud ∅	5.0 mm, 6.0 mm
Width (W)	14.21mm
Width (W2)	0.43"
Width (W2)	10.85mm
for Hole ∅ (FH)	5.0 - 6.0 mm

Downloads

RoHS datasheet

다운로드

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Halogen-free	Yes
Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US and Canada)	No
UL Recognized (US and Canada)	No
UL Recognized (US and Canada)	No
UV-Stabilised	Yes

Logistics and Packaging

Packaging 3 - Height (m)	0.212725m
Packaging 3 - Length (m)	0.51435m
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0347m³
Packaging 3 - Width (m)	0.3175m

More Information

UNSPSC Key

39121702

Similar products

CCSB5 151-02925
Connector clips for weld studs
