17/07/2024

Corrugated tube clip for hole (round), ∅18.0mm, natural, 500pcs.
Art.-No. 151-03081 | SFT4.8-2218-PA66V0-NA 세부

  • Accepts single or multiple wires
  • simply push wires into place
  • Arrowhead design for simple and secure installation
  • Access to panel from one side
Application With the increased complexity of electronic and electrical installations, the use of the SFT clip enable cables to be installed using the minimum amountof space .Typical appliaction can be seen in the frames/rail of control cabinets within the white goods industry and OA industry.
Colour Natural (NA)
Fixation Method with Arrowhead / Push Mount (Mounts)
Key product features for faster processing, for narrow space, reusable
Material Polyamide 6.6 V0 (PA66V0)
PART DESCRIPTION SFT4.8-2218-PA66V0-NA
Pack Content 500pcs.
Package Content packed in bag
Product Family SFT series
Product Group Wire Push in clip

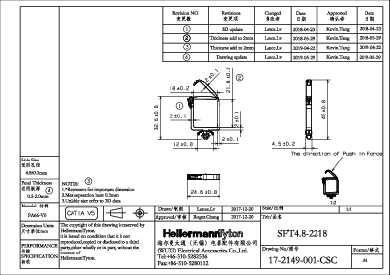

Type SFT4.8-2218
Height (H) 45.0mm
Length (L) 24.6mm
Nominal ∅ 18.0mm
Panel Thickness max. 0.5-2.0mm
Width (W) 4.5mm
for Hole ∅ (FH) 4.7 - 4.9 mm
for Panel Thickness min - max 0.5 - 2 mm
Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
ROHS compliant Yes
Specifications
GTIN-13 / EAN 4031026631806
UNSPSC Key 39121702
