Plastic hose clamp, ∅25.5-28.5mm, white, 100pcs.
Art.-No. 190-00281 | SNP24-POM-WH | 세부

Designed for quick, ratcheted installation and can be released and reused.

Releasable and reusable plastic hose clamps
Self-locking
Releasable by giving a lateral movement to the 'head'
Installation by hand possible
Installation with processing tool for a secure tensioning
For higher operating temperatures: Glass Filled PA66

More products in this product group:

Snapper hose clips for tubes and harnesses >

Base Data

Application	Our SNP range can be used as an alternative to metal hose clamps. Snapper can be used in markets as diverse as automotive, agriculture, white goods, venting systems, pumps and hydraulic systems to medical engineering.
Colour	White (WH)
Fixation Method	Plug-in mounting
Material	Polyacetal (POM)
PART DESCRIPTION	SNP24-POM-WH
Pack Content	100pcs.
Package Content packed in	bag
Product Family	SNP-Series
Product Group	Snapper hose clips for tubes and harnesses
Type	SNP24
Variant	Closed

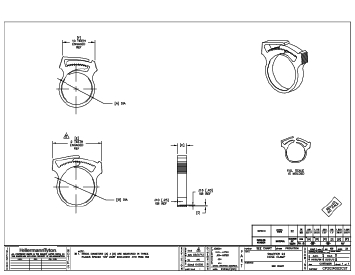

Product Dimensions


Bundle Diameter max (metric)	28.5mm
Bundle ∅ min.	25.5mm
Wall (WT)	1.7mm
Wall (WT)	.10"
Width (W)	38.4mm
Width (W) max.	1.551"
Width (W) max.	38.4mm
Width (W) min.	26.0mm
Width (W) min.	1.043"
Width (W2)	.291"
Width (W2)	7.4mm

Downloads

Specifications

Flammability	UL 94 HB
Operating Temperature	-50 °C to +95 °C
ROHS compliant	Yes
Specifications
UV-Stabilised	No

Logistics and Packaging

GTIN-13 / EAN

4944387502107

More Information

UNSPSC Key

39121702
