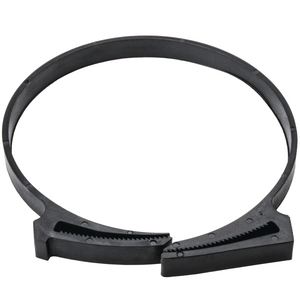

Plastic hose clamp, ∅52.2-58.6mm, black, 100pcs.
Art.-No. 192-10500 | SNP50-PA66GF13-BK |  세부

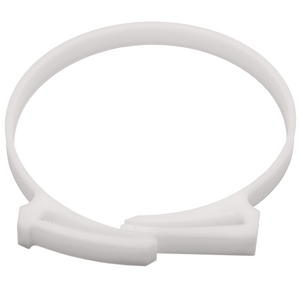

Designed for quick, ratcheted installation and can be released and reused.

    • Releasable and reusable plastic hose clamps
    • Self-locking
    • Releasable by giving a lateral movement to the 'head'
    • Installation by hand possible
    • Installation with processing tool for a secure tensioning
    • For higher operating temperatures: Glass Filled PA66
    Show more
    Downloads CAD-Download
    Application Our SNP range can be used as an alternative to metal hose clamps. Snapper can be used in markets as diverse as automotive, agriculture, white goods, venting systems, pumps and hydraulic systems to medical engineering.
    Colour Black (BK)
    Fixation Method Plug-in mounting
    Material Polyamide 6.6, glass-fibre reinforced (PA66GF13)
    PART DESCRIPTION SNP50-PA66GF13-BK
    Pack Content 100pcs.
    Package Content packed in bag
    Product Family SNP-Series
    Product Group Snapper hose clips for tubes and harnesses
    Type SNP50
    Variant Closed
    Bundle Diameter max (metric) 58.6mm
    Bundle ∅ min. 52.2mm
    Wall (WT) .068"
    Wall (WT) 1.7mm
    Width (W) max. 2.378"
    Width (W) max. 60.4mm
    Width (W) min. 36.5mm
    Width (W) min. 1.437"
    Width (W2) 0.295"
    Width (W2) 7.30mm
    ∅ D max. 58.6mm
    ∅ D max. 2.307"
    ∅ D min. 52.2mm
    ∅ D min. 2.055"
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    GTIN-13 / EAN 4031026128665
    Packaging 1 - Height (m) 0.068m
    Packaging 1 - Length (m) 0.146m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00196m³
    Packaging 1 - Weight (kg) 0.380001kg
    Packaging 1 - Width (m) 0.197m
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Width (m) 0.3175m
    UNSPSC Key 39121702
