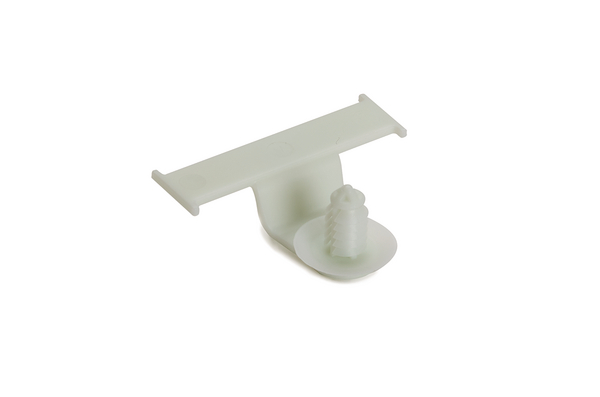

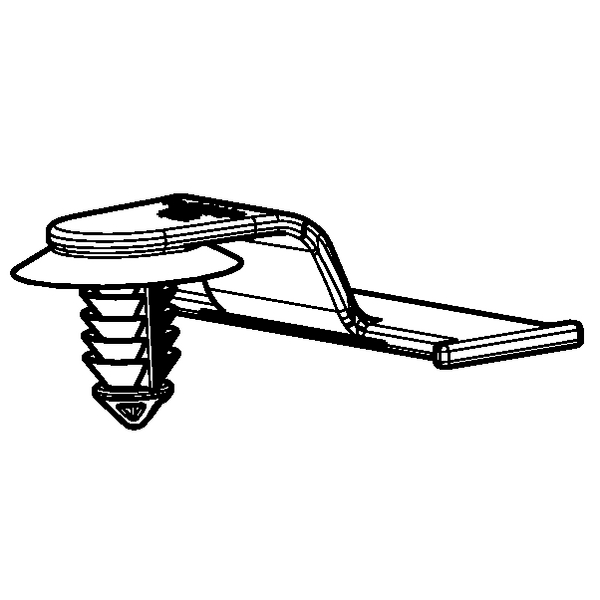

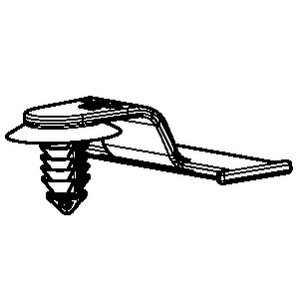

Bundling clip for hole (round), L=45.0mm, SO=20.3mm, natural, 2000pcs.
Art.-No. 133-01497 | SOC14FT6-PA66HIRHS-NA | 세부

Base Data

Colour	Natural (NA)
Fixation Method	Fir Tree
Material	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION	SOC14FT6-PA66HIRHS-NA
Pack Content	2000pcs.
Package Content packed in	box
Type	SOC14FT6

Product Dimensions

Bundling Bar Length	45.0mm
Length (L)	45.0mm
Offset Length	20.3mm
Panel Thickness	0.02 - 0.24"
Panel Thickness max.	0.6 - 6.0mm
Panel Thickness max. (imperial)	0.24"
Panel Thickness min. (imperial)	0.02"
for Hole ∅ (FH)	6.1 - 6.9 mm
for Panel Thickness min - max	0.6 - 6 mm

Downloads

Specifications

CE Certification	No
CSA Certified	No
ELV compliant (Article 4 - 2)	YES
Flammability	UL 94 HB
Hazardous Goods	No
Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US and Canada)	No
UL Recognized (US and Canada)	No
UL Recognized (US and Canada)	No
UV-Stabilised	No

Logistics and Packaging


GTIN-13 / EAN	4031026482569
Packaging 1 - Height (m)	0.127m
Packaging 1 - Length (m)	0.508m
Packaging 1 - Qty	2000
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.01961m³
Packaging 1 - Weight (kg)	3.660001kg
Packaging 1 - Width (m)	0.304m
Packaging 3 - Height (m)	0.142875m
Packaging 3 - Length (m)	0.5159375m
Packaging 3 - Qty	2000
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0229m³
Packaging 3 - Weight (kg)	4.45kg
Packaging 3 - Width (m)	0.31115m
Packaging 4 - Height (m)	0.895m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	56000
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	0.859m³
Packaging 4 - Weight (kg)	140.84kg
Packaging 4 - Width (m)	0.8m

More Information

UNSPSC Key

39121702
