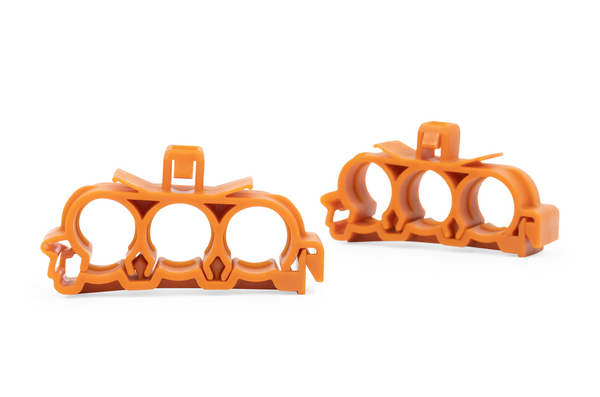

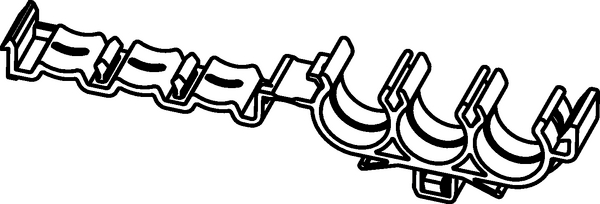

Corrugated tube clip for hole (square), nom∅16.0mm, orange, 100pcs.
Art.-No. 151-03182 | TCTC16SFT10x10-PA6-OG | 세부

Base Data

Colour	Orange (OG)
Fixation Method	with Arrowhead / Push Mount (Mounts)
Key product features	for convoluted tubes or with rib, for multiple routing
Material	Polyamide 6 (PA6)
PART DESCRIPTION	TCTC16SFT10x10-PA6-OG
Pack Content	100pcs.
Package Content packed in	bag
Type	TCTC16SFT10x10

Product Dimensions

Attach to Ø	16.0
Bundle Diameter max (metric)	16.0mm
Bundle ∅ min.	16.0mm
Height (H)	33.6mm
Length (L)	68.3mm
Nominal ∅	16.0mm
Panel Thickness max.	1.0-1.8mm
Width (W)	15.0mm
for Hole ∅ (FH)	10.0 x 10.0 mm (square)
for Panel Thickness min - max	1 - 1.8 mm

Downloads

Specifications

ELV compliant (Article 4 - 2)	YES
Hazardous Goods	No
ROHS compliant	Yes
Specifications

Logistics and Packaging

GTIN-13 / EAN	4031026642840
Packaging 1 - Height (m)	0.12m
Packaging 1 - Length (m)	0.415m
Packaging 1 - Qty	100
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.01668m³
Packaging 1 - Weight (kg)	1.028kg
Packaging 1 - Width (m)	0.335m

More Information

UNSPSC Key

39121702
