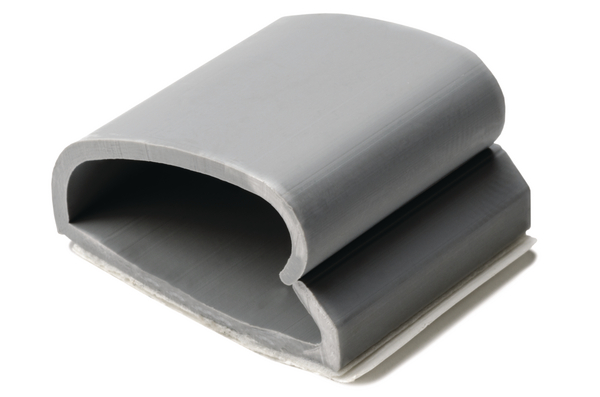

Cable clip, Dmin=12.7mm, Dmax=19.1mm
Art.-No. 151-00667 | WAC075-PVC-GY | 세부

Base Data

Colour	Grey (GY)
Material	Polyvinylchloride (PVC)
PART DESCRIPTION	WAC075-PVC-GY
Pack Content	500pcs.
Package Content packed in	bag
Type	WAC075

Product Dimensions

Bundle Diameter max (metric)	19.1mm
Bundle ∅ min.	12.7mm
Height (H)	15.8mm
Height (H2)	26.7mm
Length (L)	28.7mm
Thickness of Adhesive (TA) nom.	0.036"
Thickness of Adhesive (TA) nom.	0.91mm
Width (W)	25.4mm

Downloads

Technical drawing CL07-048-002-CST

다운로드

Specifications

Adhesive	Self adhesive
CE Certification	No
CSA Certified	No
Flammability	UL 94 V0 (excluding adhesive)
Operating Temperature	+50 °C
ROHS compliant	No
UL Listed (US and Canada)	No
UL Listed (US and Canada)	No
UL Recognized (US and Canada)	No
UL Recognized (US and Canada)	No
UV-Stabilised	No

Logistics and Packaging

GTIN-13 / EAN	4031026725642
Packaging 3 - Height (m)	0.2159m
Packaging 3 - Length (m)	0.606425m
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.052m³
Packaging 3 - Width (m)	0.396875m

More Information

UNSPSC Key

39121702
