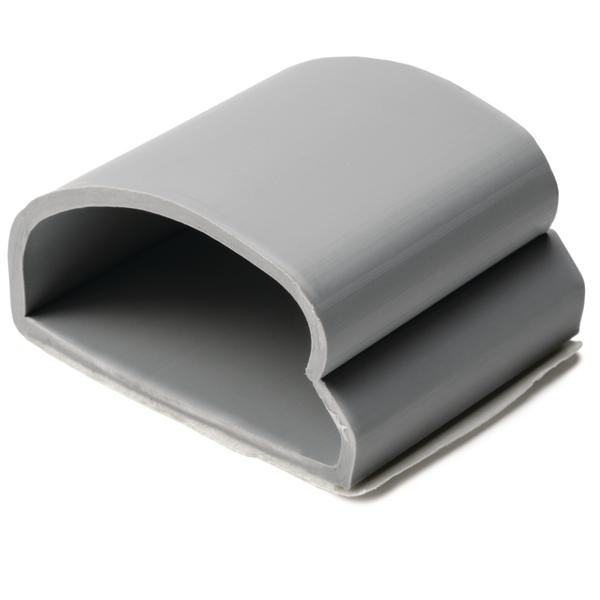

Cable clip, Dmin=19.1mm, Dmax=25.4mm
Art.-No. 151-00668 | WAC100-PVC-GY |

Base Data

Colour	Grey (GY)
Material	Polyvinylchloride (PVC)
PART DESCRIPTION	WAC100-PVC-GY
Pack Content	500pcs.
Package Content packed in	pack
Type	WAC100

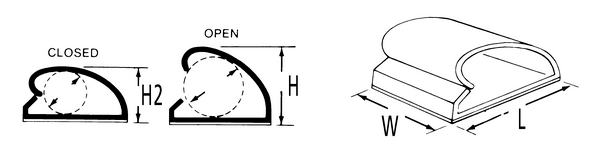

Product Dimensions

Bundle ⌀ max.	25.4mm
Bundle ⌀ min.	19.1mm

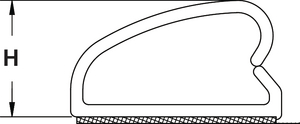

Height (H)	21.6mm
Height (H2)	34.3mm

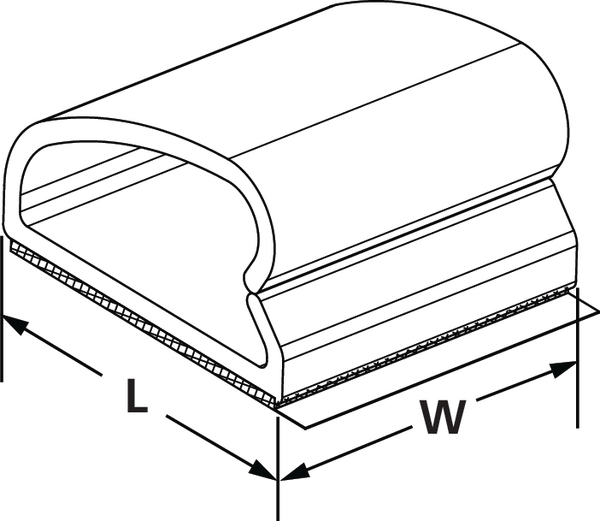

Length (L)	38.1mm
Thickness of Adhesive (TA) nom.	0.036"
Thickness of Adhesive (TA) nom.	0.91mm
Width (W)	31.8mm

Downloads

Technical drawing CL07-049-002-CST

다운로드

Specifications

Adhesive	Self adhesive
CE Certification	No
CSA Certified	No
Flammability	UL 94 V0 (excluding adhesive)
Operating Temperature	+50 °C
ROHS compliant	No
UL Listed (US and Canada)	No
UL Listed (US and Canada)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No
UV-Stabilised	No

Logistics and Packaging

GTIN-13 / EAN	4031026725659
Packaging 1 - Type	pack
Packaging 3 - Height (m)	0.20954999999999998m
Packaging 3 - Length (m)	0.6048375m
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0501m³
Packaging 3 - Weight (kg)	7.64kg
Packaging 3 - Width (m)	0.39528749999999997m

More Information

UNSPSC Key

39121702
