24/12/2024

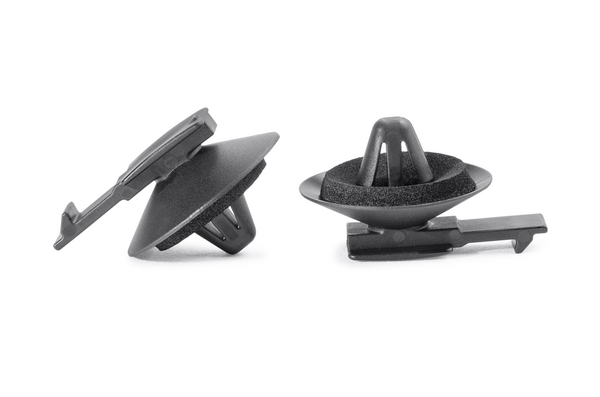

Connector clip for hole (round), black, 1000pcs.
Art.-No. 151-00934 | YCCSFT6.5PT0.8-1.5MD-PA66HIRHS-BK |  세부

    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • Arrowhead locks into place for secure fixing at all times
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION YCCSFT6.5PT0.8-1.5MD-PA66HIRHS-BK

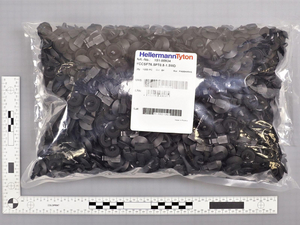

    Pack Content 1000pcs.
    Package Content packed in bag
    Type YCCSFT6.5PT0.8-1.5MD
    Height (H) 16.5mm
    Length (L) 28.5mm
    Width (W) 22.0mm
    for Hole ∅ (FH) 6.3 - 6.7 mm
    for Panel Thickness min - max 0.8 - 1.5 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026438085
    Packaging 1 - Height (m) 0.075m
    Packaging 1 - Length (m) 0.21m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00536m³
    Packaging 1 - Weight (kg) 1.082135kg
    Packaging 1 - Width (m) 0.34m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 10000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 12.11135kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.249m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 120000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.199m³
    Packaging 4 - Weight (kg) 166.32kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121702
