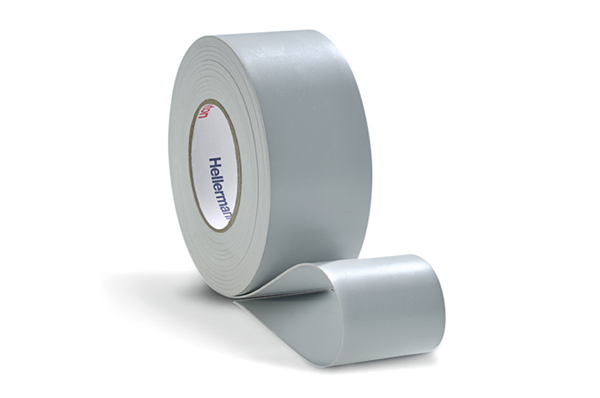

Arc and Freproofing Tape 0.76mm thick / 38mm x 6m grey
Art.-No. 711-10100
| HTAPE-POWER410-PM-GY
|
세부
This product is not available anymore.
- Unsupported, linerless, elastomeric tape
- Superior arc and flame proofing for high voltage and communication cables
- For cable protection in cable trays, switch boxes, cable conduits and substations
- Excellent flexibility and conformability for easy application
- Creates insulating residue when exposed to severe flame conditions
- Passes flammability test according to Con-Ed EO 5343-14
- Withstands Bunsen burner flame for many minutes
- Water, chemical and UV resistant
![](https://www.hellermanntyton.com/shared/speclogos/99595_All_Languages.jpg)
More products in this product group:
Breaking Strength | 70N/10 mm |
Dielectric Strength | 19.7kV/mm |
ELV compliant (Article 4 - 2) | YES |
Elongation at break | 300% |
Halogen-free | No |
Hazardous Goods | No |
Insulating (Yes/No) | No |
ROHS compliant | Yes |
Self extinguishing | Yes |
Shelf Life | 5 years |
Specifications |
![]() |
Suitable for high voltage (Yes/No) | No |
UV-Stabilised | Yes |
Volume Resistance | 10¹³ Ω cm |
|
|
GTIN-13 / EAN | 4031026548791 |
Packaging 1 - Height (m) | 0.038m |
Packaging 1 - Length (m) | 0.09m |
Packaging 1 - Qty | 1 |
Packaging 1 - Type | pcs. |
Packaging 1 - Volume (m³) | 0.00031m³ |
Packaging 1 - Weight (kg) | 0.268kg |
Packaging 1 - Width (m) | 0.09m |
Packaging 3 - Height (m) | 0.17m |
Packaging 3 - Length (m) | 0.39m |
Packaging 3 - Qty | 32 |
Packaging 3 - Type | carton |
Packaging 3 - Volume (m³) | 0.0136m³ |
Packaging 3 - Weight (kg) | 9.064kg |
Packaging 3 - Width (m) | 0.205m |
Packaging 4 - Height (m) | 0.995m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 1600 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 0.955m³ |
Packaging 4 - Weight (kg) | 474.2kg |
Packaging 4 - Width (m) | 0.8m |
