24/11/2024

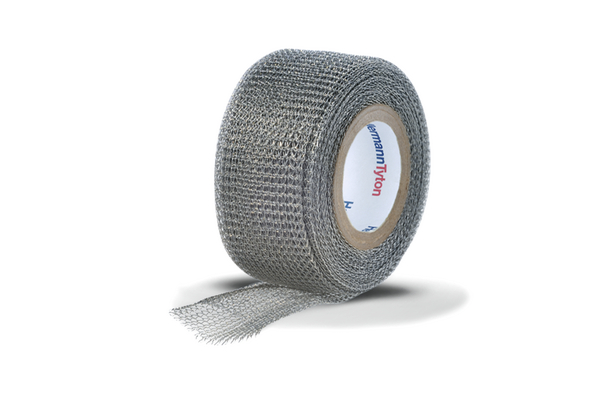

All-copper knit-mesh 25 mm x 4.6 m natural
Art.-No. 711-10002 | HTAPE-SHIELD320-SNCU-NA 세부

This product is not available anymore.
  • All-copper knit mesh
  • Excellent pliability when applied in the field
  • Easy application
  • Good electromagnetic shielding
Colour Natural (NA)
Material Tin-plated copper (SNCU)
PART DESCRIPTION HTAPE-SHIELD320-SNCU-NA
Pack Content 1Reel
Package Content packed in reel
Product Family HelaTape Shield 320
Product Group Conductive Tapes – Electrical Shielding Tape
Type HTAPE-SHIELD320
Length (L) 4.6m
Thickness (T) 0.45mm
Width (W) 25mm
ELV compliant (Article 4 - 2) YES
Elongation at break 5 %
Halogen-free Yes
Hazardous Goods No
Insulating (Yes/No) No
Operating Temperature -40 °C to +125 °C
ROHS compliant Yes
Self extinguishing No
Shelf Life 5 years
Specifications
Suitable for high voltage (Yes/No) Yes
UV-Stabilised No
GTIN-13 / EAN 4031026548784
Packaging 1 - Height (m) 0.028m
Packaging 1 - Length (m) 0.07m
Packaging 1 - Qty 1
Packaging 1 - Type pcs.
Packaging 1 - Volume (m³) 0.00014
Packaging 1 - Weight (kg) 0.058kg
Packaging 1 - Width (m) 0.07m
Packaging 3 - Height (m) 0.21m
Packaging 3 - Length (m) 0.39m
Packaging 3 - Qty 60
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0143
Packaging 3 - Weight (kg) 3.955kg
Packaging 3 - Width (m) 0.175m
Packaging 4 - Height (m) 1.195m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 3600
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.147
Packaging 4 - Weight (kg) 258.299kg
Packaging 4 - Width (m) 0.8m
Storage Temperature +23 °C
Storage conditions 65% relative humidity.
