Abrasion-resistant polyamide braided sleeving
Art.-No. 170-22203 | HEGPA6622-PA66-BK |  세부

HEGPA66 - Extreme abrasion protection sleeve.

    • Made from heavy-duty polyamide yarn
    • Excellent abrasion resistance
    • Highly flexible
    • Easy to apply over irregular shapes
    • Eases application by expanding when compressed
    • Very high surface covering
    Show more
    Downloads
    Application Helagaine HEGPA66 is particularly suitable for vehicle manufacturing as well as plant construction.
    Colour Black (BK)
    Key product features abrasion resistant
    Material Polyamide 6.6 (PA66)
    Open, post termination (Yes/No) No
    PART DESCRIPTION HEGPA6622-PA66-BK
    Pack Content 400m
    Package Content packed in reel
    Product Family Helagaine HEGPA66
    Product Group Abrasion-resistant polyamide braided sleeving
    Type HEGPA6622
    Bundle Diameter max (metric) 25mm
    Bundle ∅ min. 16mm
    Nominal ∅ 22mm
    ELV compliant (Article 4 - 2) YES
    EN 45545-2 Results R22 HL3, R23 HL3
    Flammability UL 94 V2, FMVSS 302
    Halogen-free Yes
    Hazardous Goods No
    Melting Point +255 °C
    Operating Temperature -60 °C to +150 °C
    ROHS compliant Yes
    Specifications
    Specifications ECE R-118-03 Abschnitt 6 / Annex 6, ECE R-118-03 Abschnitt 8 / Annex 8, EN 45545-2
    GTIN-13 / EAN 4031026281483
    Packaging 1 - Height (m) 0.245m
    Packaging 1 - Length (m) 0.4m
    Packaging 1 - Qty 400
    Packaging 1 - Type reel
    Packaging 1 - Volume (m³) 39.2m³
    Packaging 1 - Weight (kg) 7.52kg
    Packaging 1 - Width (m) 400.0m
    Packaging 3 - Height (m) 0.408m
    Packaging 3 - Length (m) 0.4m
    Packaging 3 - Qty 400
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0462m³
    Packaging 3 - Weight (kg) 8.124kg
    Packaging 3 - Width (m) 0.283m

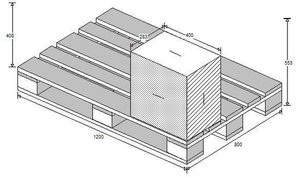

    Packaging 4 - Height (m) 0.96m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 6400
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 0.922m³
    Packaging 4 - Weight (kg) 150.984kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39131602
