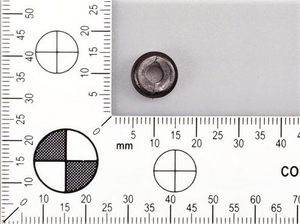

Cable grommet, ∅9.0 mm, black, 1000pcs.
Art.-No. 633-02090 | HV1209-PVC-FR-BK |  세부

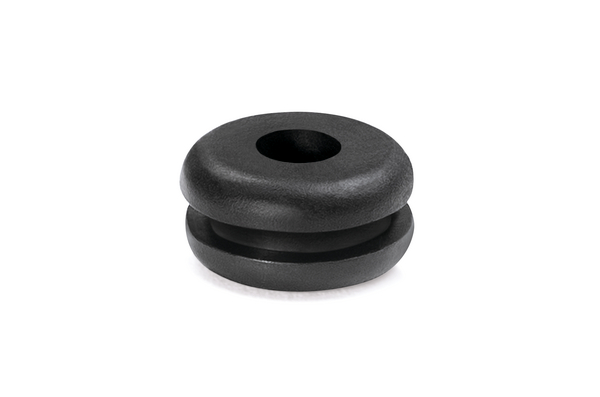

Edge Protection Grommet - HV1209.

    • Protects cables from sharp edges
    • Provides additional strain relief
    • Flexible and easy to apply
    • High resistance to chemicals and environmental influences
    Downloads CAD-Download
    Application Edge protection grommets are used wherever cable and wires are routed through apertures. HellermannTyton grommets offer excellent mechanical protection.
    Cable ∅ max 5.0mm
    Cable ∅ min 4.0mm
    Colour Black (BK)
    Material Polyvinylchloride, flame retardant (PVC-FR)
    PART DESCRIPTION HV1209-PVC-FR-BK

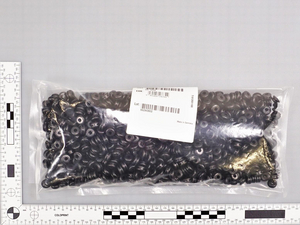

    Pack Content 1000pcs.
    Package Content packed in pcs.
    Product Family Edge protection grommets
    Product Group For apertures
    Type HV1209
    Variant Round
    Bundle Diameter max (metric) 11.0mm
    Diameter (D) 4.0mm
    Height (H) 5.5mm
    Height (H2) 1.5mm
    Outside Ø (OD) 11.0mm
    Shore Hardness A 55±5
    for Hole ∅ (FH) 9.0 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V0
    Hazardous Goods No
    Nato number 5325-12-163-9496
    Operating Temperature -30 °C to +60 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026186344
    Packaging 1 - Height (m) 0.04m
    Packaging 1 - Length (m) 0.27m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00346m³
    Packaging 1 - Weight (kg) 0.47kg
    Packaging 1 - Width (m) 0.32m
    UNSPSC Key 39131603
