Cable grommet, natural, 2000pcs.
Art.-No. 631-08229 | HV4822-PVC-FR-NA |  세부

Push-on caps and elbow grommets in various dimensions.

    • Protects effectively against spraying water
    • Flexible and easy to apply
    • High resistance to chemicals and environmental influences
    Downloads
    Application The protective push-on caps and elbow grommets are specially constructed to insulate and protect flat pin bushings. They are used in all areas of automotive electronics and connection technology.
    Cable ∅ max 5.0mm
    Cable ∅ min 2.0mm
    Colour Natural (NA)
    Material Polyvinylchloride, flame retardant (PVC-FR)
    PART DESCRIPTION HV4822-PVC-FR-NA
    Pack Content 2000pcs.
    Package Content packed in pcs.
    Product Family HV4822
    Product Group For blade receptables and terminals
    Type HV4822
    Variant Open

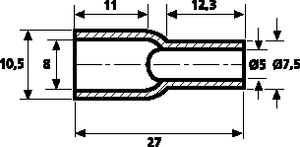

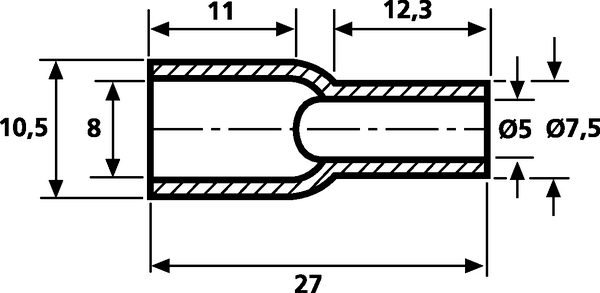

    Diameter (D) 8.0mm
    Outside Ø (OD) 10.5mm
    Outside ∅ (OD2) 7.5mm
    Shore Hardness A 55±5
    ∅ (D2) 5.0mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V0
    Hazardous Goods No
    Nato number 5975-12-315-1708
    Operating Temperature -30 °C to +60 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026185804
    Packaging 1 - Height (m) 0.09m
    Packaging 1 - Length (m) 0.21m
    Packaging 1 - Qty 2000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00586m³
    Packaging 1 - Weight (kg) 1.762kg
    Packaging 1 - Width (m) 0.31m
