Right-Angle Shapes
Art.-No. 411-06051 | 1106-2-B7.-PO-X-BK |  세부

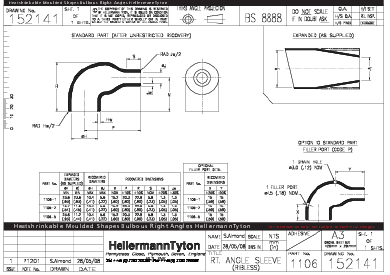

1108-1 supplied / fully recovered.

    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Application Tool H6100, CHG900
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 1106-2-B7.-PO-X-BK
    Pack Content 1pc.
    Package Content packed in bag
    Product Family Helashrink 1100 Series, without rib
    Product Group Right-Angle Shapes
    Type 1106-2-B7.
    Angle 90
    Flexibility semi rigid
    HW ± 20 % 1.3mm
    JW ± 30 % 1.3mm
    M nom. 15.2mm
    P ± 10 % 20.3mm
    R nom. 22.9mm
    R ± 10 % 22.9mm
    S nom. 5.8mm
    ∅H max. b 10.4mm
    ∅H min. a 13.7mm
    ∅J max. b 5.6mm
    ∅J min. a 11.6mm
    Dielectric Strength 14kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Operating Temperature -55 °C to +135 °C
    ROHS compliant Yes
    Specifications
    Tensile Strength 13MPa
    GTIN-13 / EAN 5022660553868
    Packaging 1 - Height (m) 0.020m
    Packaging 1 - Length (m) 0.160m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00032m³
    Packaging 1 - Weight (kg) 0.002kg
    Packaging 1 - Width (m) 0.100m
    UNSPSC Key 39121721
