Right-Angle Shapes, VG style
Art.-No. 411-33019 | 1133-1-G-PO-X-BK |  세부

1135-1-G supplied / fully recovered.

    • Use in applications of partially loaded connectors with small cable diameters
    • Tail design for easy orientation prior to cooling
    • Strain relief for connector cable
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 1133-1-G-PO-X-BK
    Pack Content 1pc.
    Package Content packed in bag
    Product Family Helashrink 1100 Series, with rib, low profile, high ratio
    Product Group Right-Angle Shapes, VG style
    Shrink Ratio up to 3:1
    Type 1133-1-G
    Variant For plug
    Angle 90
    Flexibility semi rigid

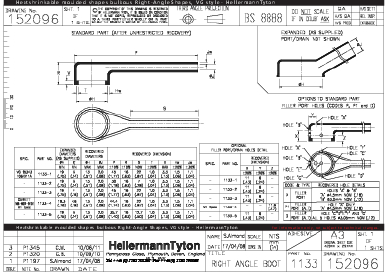

    HW ± 20 % 1.5mm
    JO ± 10 % 22mm
    JW ± 20 % 1.1mm
    JW ± 30 % 1.1mm
    P ± 10 % 45mm
    R ± 10 % 16mm
    S nom. 22mm
    T ± 10 % 1mm
    T ± 20 % 1mm
    V max. 3.3mm
    V ± 10 % 3mm
    ∅H max. b 13mm
    ∅H min. a 19mm
    ∅J max. b 2mm
    ∅J min. a 6mm
    Dielectric Strength 14kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Nato number 5970-12-305-9877
    Operating Temperature -75 °C to +150 °C
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    Tensile Strength 15MPa
    GTIN-13 / EAN 5022660413681
    Packaging 1 - Height (m) 0.016m
    Packaging 1 - Length (m) 0.150m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00024m³
    Packaging 1 - Weight (kg) 0.003001kg
    Packaging 1 - Width (m) 0.100m
    UNSPSC Key 39121721
