T-Shapes, VG style/MIL style
Art.-No. 412-02019 | 1202-1-G-PO-X-BK |  세부

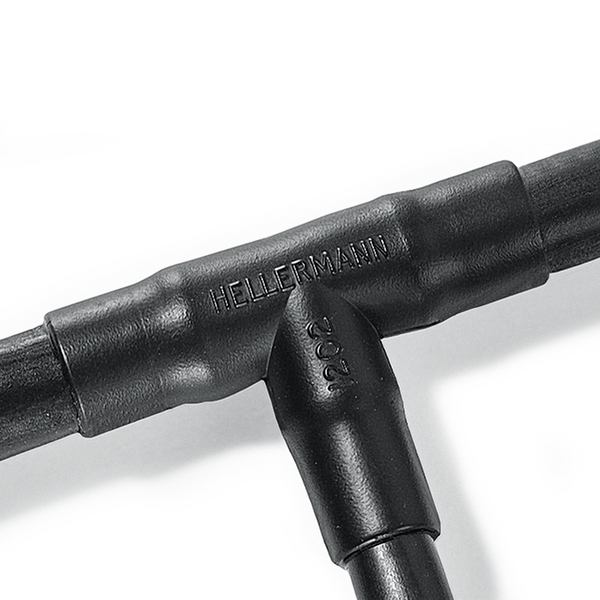

1202-1-G recovered onto a cable harness.

    • Strain relief, sealing and mechanical protection on cable harnesses
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 1202-1-G-PO-X-BK
    Pack Content 1pc.
    Package Content packed in bag
    Product Family Helashrink 1200 Series
    Product Group T-Shapes, VG style/MIL style
    Type 1202-1-G
    Variant For 2-core cables
    Flexibility semi rigid
    HW ± 20 % 1.5mm
    HW ± 30 % 1.5mm
    JW ± 20 % 1.5mm
    JW ± 30 % 1.5mm
    KW ± 20 % 1.5mm
    M nom. 37mm
    P ± 10 % 58.7mm
    R ± 10 % 29.2mm
    S ± 10 % 29.2mm
    ∅H max. b 7.0mm
    ∅H min. a 13.2mm
    ∅J max. b 6.1mm
    ∅J min. a 13.2mm
    ∅K max. b 6.1mm
    ∅K min. a 13.2mm
    Dielectric Strength 14kV/mm
    Dielectric Strength test method ASTM D2671
    ELV compliant (Article 4 - 2) YES
    Flammability ASTM D635
    Hazardous Goods No
    Nato number 5970-01-341-8346, 5970-12-304-2644, 5970-99-756-1153
    Operating Temperature -75 °C to +150 °C
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    UV-Stabilised No
    GTIN-13 / EAN 5022660418402
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 0.010001kg
    UNSPSC Key 39121721
