17/07/2024

T-Shapes, VG style/MIL style
Art.-No. 412-03036 | 1203-50-L-FPMX-BK |  세부

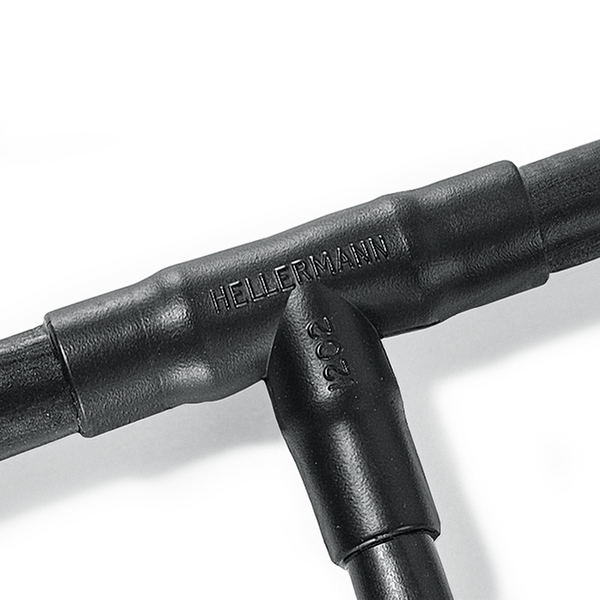

1202-1-G recovered onto a cable harness.

    • Strain relief, sealing and mechanical protection on cable harnesses
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Application Tool H6100, CHG900
    Colour Black (BK)
    Material Fluoropolymer, cross-linked (FPMX)
    PART DESCRIPTION 1203-50-L-FPMX-BK
    Pack Content 1pc.
    Package Content packed in bag
    Product Family Helashrink 1200 Series
    Product Group T-Shapes, VG style/MIL style
    Type 1203-50-L
    Variant For 2-core cables
    HW ± 30 % 1.5mm
    JW ± 30 % 1.5mm
    KW ± 20 % 1.0mm
    P ± 10 % 52mm
    R ± 10 % 26mm
    ∅H max. b 6mm
    ∅H min. a 13mm
    ∅J max. b 6mm
    ∅J min. a 13mm
    ∅K max. b 3mm
    ∅K min. a 6.5mm
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    UV-Stabilised No
    GTIN-13 / EAN 5022660690402
    Packaging 1 - Height (m) 0.020m
    Packaging 1 - Length (m) 0.160m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00032m³
    Packaging 1 - Weight (kg) 0.005001kg
    Packaging 1 - Width (m) 0.100m
    UNSPSC Key 39121721
