T-Shapes, VG style/MIL style
Art.-No. 412-09017 | 1209-5-L-FPMX-BK |  세부

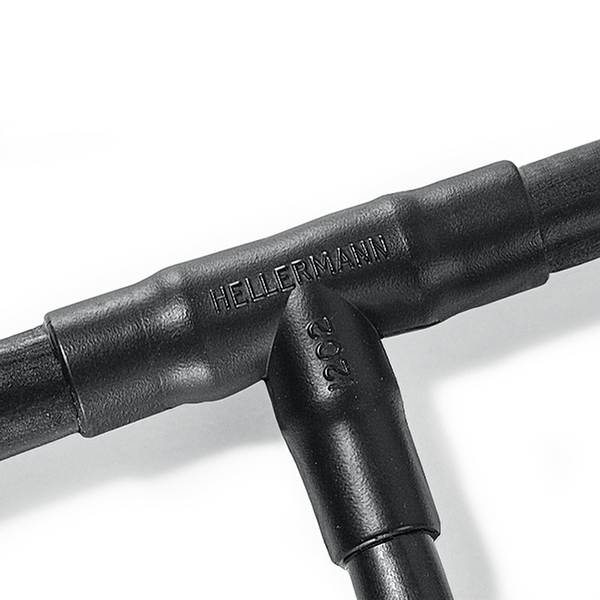

1202-1-G recovered onto a cable harness.

    • Strain relief, sealing and mechanical protection on cable harnesses
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Fluoroelastomer, cross-linked (FPMX)
    PART DESCRIPTION 1209-5-L-FPMX-BK
    Pack Content 1pc.
    Package Content packed in bag
    Product Family Helashrink 1200 Series
    Product Group T-Shapes, VG style/MIL style
    Type 1209-5-L
    Variant For 2-core cables
    HW ± 30 % 2.5mm
    JW ± 30 % 2.5mm
    KW ± 20 % 1.5mm
    P ± 10 % 108mm
    R ± 10 % 54mm
    ∅H max. b 13mm
    ∅H min. a 25mm
    ∅J max. b 13mm
    ∅J min. a 25mm
    ∅K max. b 6mm
    ∅K min. a 12mm
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    UV-Stabilised No
    GTIN-13 / EAN 5022660420191
    Packaging 1 - Height (m) 0.040m
    Packaging 1 - Length (m) 0.200m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00112m³
    Packaging 1 - Weight (kg) 0.022001kg
    Packaging 1 - Width (m) 0.140m
    UNSPSC Key 39121721
