Angle Shapes
Art.-No. 418-21001 | 1821-4-G-PO-X-BK |  세부

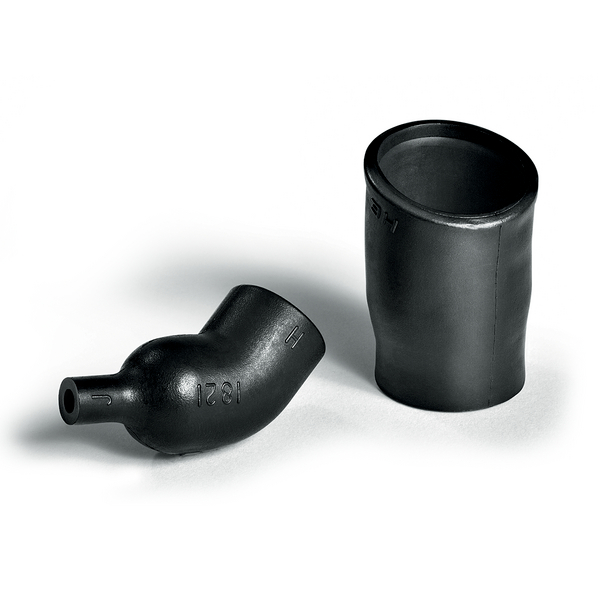

1821-42 supplied / fully recovered.

    • Provides strain relief and mechanical protection for harness systems
    • Use in conjunction with a circular grooved adaptor
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 1821-4-G-PO-X-BK
    Pack Content 1pc.
    Package Content packed in bag
    Product Family Helashrink 1800 Series, with rib, 30°, 45°, 60° angle
    Product Group Angle Shapes
    Type 1821-4-G
    Flexibility semi rigid
    HW ± 20 % 2.3mm
    JW ± 20 % 1.8mm
    P ± 10 % 24mm
    R ± 10 % 10mm
    S ± 10 % 3mm
    ∅H max. b 14.2mm
    ∅H min. a 20mm
    ∅J max. b 4.1mm
    ∅J min. a 20mm
    Dielectric Strength 14kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Operating Temperature -75 °C to +150 °C
    ROHS compliant Yes
    Specifications
    Tensile Strength 15MPa
    UV-Stabilised No
    GTIN-13 / EAN 5022660441844
    UNSPSC Key 39121721
