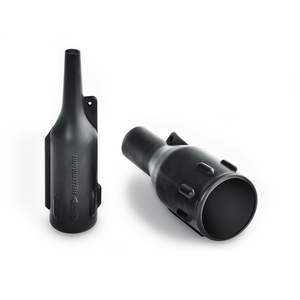

Bottle Shapes, VG style
Art.-No. 401-99004 | 199-4-GWM250-PO-X-BK |  세부

199-4-G supplied / fully recovered.

    • Specifically for small audio connectors
    • Multiple external ribs to improve grip in harsh conditions
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 199-4-GWM250-PO-X-BK
    Pack Content 1pc.
    Package Content packed in bag
    Product Family Helashrink 190 Series, with external ribs
    Product Group Bottle Shapes, VG style
    Type 199-4-GWM250
    Variant For plug
    HW ± 20 % 1.8mm
    JW ± 20 % 0.5mm
    JW ± 30 % .05mm
    P ± 10 % 70mm
    R nom. 35mm
    R ± 10 % 35mm
    S nom. 20mm
    T ± 20 % 1mm
    V ± 10 % 1.5mm
    ∅H max. b 14mm
    ∅H min. a 17.5mm
    ∅J max. b 4.3mm
    ∅J min. a 7mm
    Adhesive WM250
    ELV compliant (Article 4 - 2) YES
    Min. Shrink Temperature - °C +135 °C
    Operating Temperature -55 °C to +175 °C
    ROHS compliant Yes
    Specifications
    Tensile Strength 15MPa
    GTIN-13 / EAN 5022660442193
    Packaging 1 - Qty 1
    Packaging 1 - Weight (kg) 0.0040kg
    UNSPSC Key 39121721
