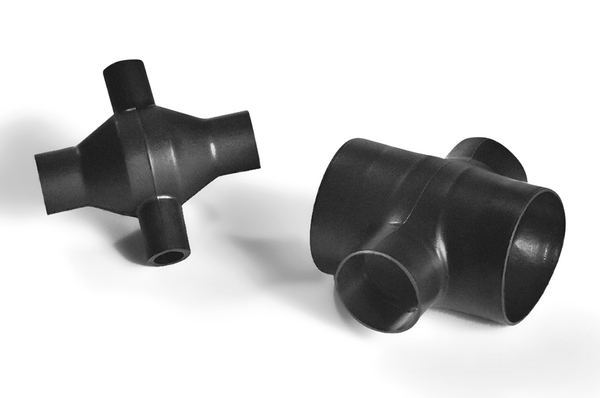

Right Angle Cross Shapes
Art.-No. 420-03002 | 2003-1-G-PO-X-BK |  세부

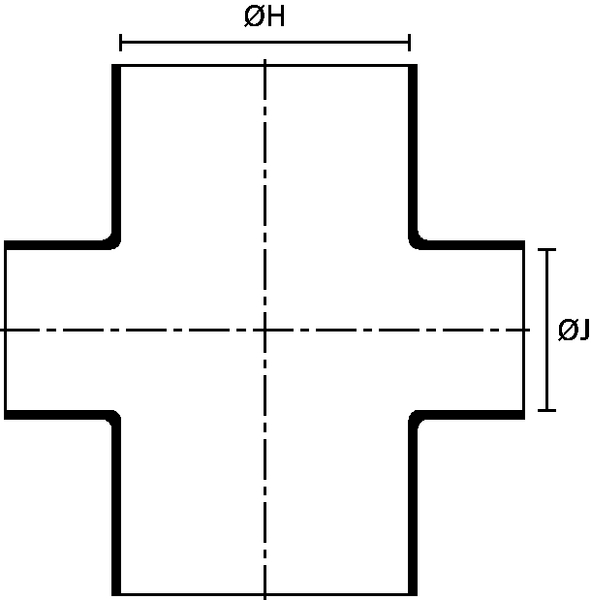

2003-1 supplied / fully recovered.

    • Allows wires to be routed in four 90° directions
    • Provides strain relief and mechanical protection
    • Environmental sealing can be achieved when used in conjunction with one of our extensive range of adhesives
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 2003-1-G-PO-X-BK
    Pack Content 1pc.
    Package Content packed in bag
    Product Family Helashrink 2000 Series
    Product Group Right Angle Cross Shapes
    Type 2003-1-G
    Flexibility semi rigid

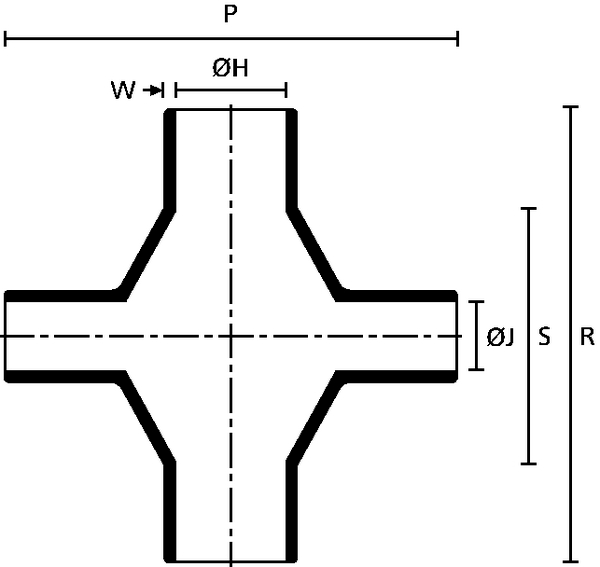

    P ± 10 % 38.1mm
    R ± 10 % 38.1mm
    S ± 10 % 22.1mm
    W min. 1.1mm
    W ± 20 % 1.1mm
    ∅H max. b 9.7mm
    ∅H min. a 19.3mm
    ∅J max. b 9.7mm
    ∅J min. a 13.2mm
    Dielectric Strength 14kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Nato number 5970-99-792-4906
    Operating Temperature -75 °C to +150 °C
    ROHS compliant Yes
    Specifications
    Tensile Strength 15MPa
    UV-Stabilised No
    GTIN-13 / EAN 5022660442704
    UNSPSC Key 39121721
