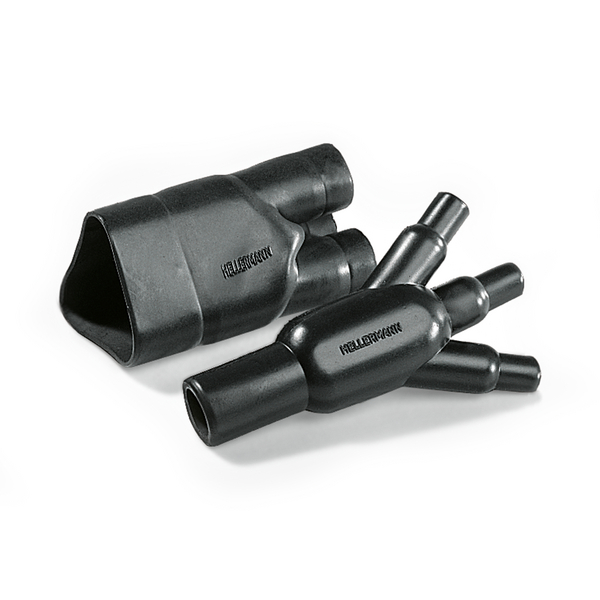

3-Way Outlet Shapes, VG style
Art.-No. 403-04001 | 304-1-B7-PO-X-BK |  세부

304-1-G supplied / fully recovered.

    • Cable strain relief and mechanical protection at harness transition points
    • All outlets clearly marked to aid orientation during installation
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 304-1-B7-PO-X-BK
    Pack Content 1pc.
    Package Content packed in bag
    Product Family Helashrink 300 Series
    Product Group 3-Way Outlet Shapes, VG style
    Shrink Ratio up to 3:1
    Type 304-1-B7
    Variant For 3-core cables
    Flexibility semi rigid
    HW ± 20 % 2.5mm
    JW ± 30 % 1.5mm
    P ± 10 % 93mm
    R ± 10 % 50mm
    S ± 10 % 50mm
    T ± 10 % 43mm
    W ± 20 % 1.5mm
    ∅H max. b 13.5mm
    ∅H min. a 27mm
    ∅J max. b 7mm
    ∅J min. a 13mm
    ∅J/K/L max. b 7mm
    ∅J/K/L min. a 13mm
    ∅K max. b 7mm
    ∅K min. a 13mm
    Dielectric Strength 15kV/mm
    Dielectric Strength test method ASTM D2671
    ELV compliant (Article 4 - 2) YES
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Nato number 5970-99-654-1128
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    GTIN-13 / EAN 5022660451782
    Packaging 1 - Height (m) 0.025m
    Packaging 1 - Length (m) 0.130m
    Packaging 1 - Qty 1
    Packaging 1 - Volume (m³) 0.00033m³
    Packaging 1 - Weight (kg) 0.0120kg
    Packaging 1 - Width (m) 0.100m
    Packaging 2 - Qty 0
    Packaging 3 - Qty 0
    Packaging 4 - Qty 0
    UNSPSC Key 39121721
