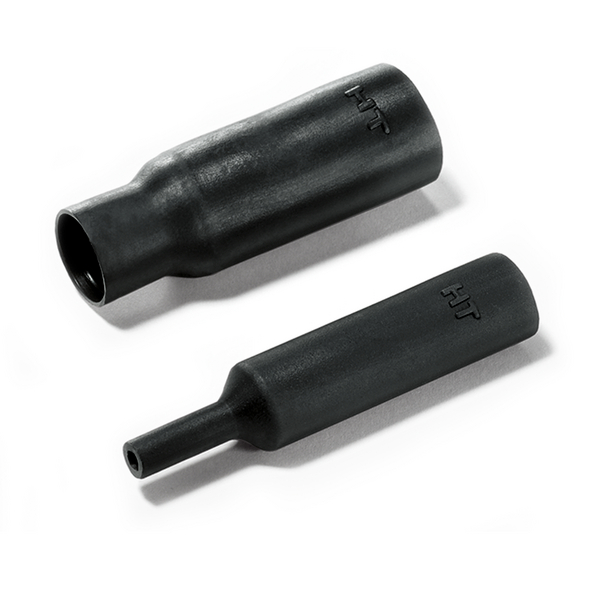

Low Profile Shim Boots
Art.-No. 422-10108 | 313E447-6-PO-X-BK |  세부

313E445-457 Series supplied / fully recovered.

    • Used to build up or shim a cable diameter
    • Facilitates better fit for components in cable harness
    Downloads
    Application Heat Shrinkable Moulded Shapes for use in Electical and Electronic Cable Harness Applications
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 313E447-6-PO-X-BK
    Pack Content 5pcs.
    Package Content packed in bag
    Product Family Helashrink 313E Series, without adapter lip
    Product Group Low Profile Shim Boots
    Shrink Ratio 2:1
    Type 313E447-6
    Variant For 3-core cables
    Flexibility Flexible
    HO ± 10 % 27.9mm
    HW ± 25 % 2.2mm
    JW ± 25 % 1.5mm
    P ± 10 % 53.3mm
    R ± 10 % 41.1mm
    S ± 10 % 16.5mm
    ∅H max. b 22.1mm
    ∅H min. a 22.1mm
    ∅J max. b 3.3mm
    ∅J min. a 11.1mm
    Flammability ASTM D635
    Min. Shrink Temperature - °C +100 °C
    Operating Temperature -55 °C to +120 °C
    ROHS compliant Yes
    Specifications
    Tensile Strength 12MPa
    UV-Stabilised No
    GTIN-13 / EAN 5022660678080
    UNSPSC Key 39121721
