Low Profile Right Angle Boots
Art.-No. 422-30002 | 333F322-PO-X-BK |  세부

333F322-385 Series supplied / fully recovered.

    • Lightweight strain relief for small cable diameters requiring high shrink ratio
    • Right angle connector housing with long cable entry and inner lip
    Downloads
    Application Heat Shrinkable Moulded Shapes for use in Electical and Electronic Cable Harness Applications
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 333F322-PO-X-BK
    Pack Content 5pcs.
    Package Content packed in bag
    Product Family Helashrink 333F Series, with adapter lip, 90° angle
    Product Group Low Profile Right Angle Boots
    Shrink Ratio 3:1
    Type 333F322
    Variant For plug
    Angle 90
    Flexibility Flexible

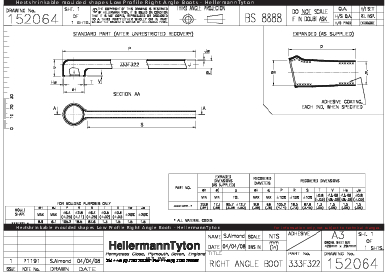

    HW ± 1.5 1.5mm
    JW ± 0.8 1.5mm
    P ± 10 % 105.1mm
    R ± 15 % 18.5mm
    S ± 1.5 1.5mm
    S ± 10 % 87.6mm
    T ± 0.8 1.3mm
    ∅H max. b 9.9mm
    ∅H min. a 23.8mm
    ∅J max. b 6.6mm
    ∅J min. a 17.2mm
    Flammability ASTM D635
    Min. Shrink Temperature - °C +100 °C
    Operating Temperature -55 °C to +120 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    GTIN-13 / EAN 5022660457111
    UNSPSC Key 39121721
