25/12/2024

4-Way Outlet Shapes, VG style
Art.-No. 404-03001 | 403-1-B7-PO-X-BK |  세부

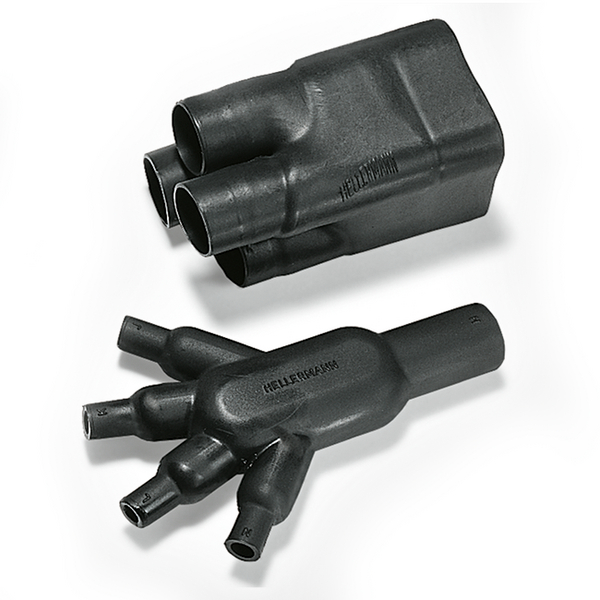

403-1 supplied / fully recovered.

    • 4-way outlet shape
    • Cable sealing, strain relief and mechanical protection
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 403-1-B7-PO-X-BK
    Pack Content 1pc.
    Package Content packed in bag
    Product Family Helashrink 400 Series
    Product Group 4-Way Outlet Shapes, VG style
    Shrink Ratio up to 3:1
    Type 403-1-B7
    Variant For 4-core cables
    Flexibility semi rigid
    JW ± 30 % 1.5mm
    P ± 10 % 102mm
    P ±10%=overall length 102mm
    R nom. 49mm
    R ± 10 % 52mm
    S nom. 45mm
    S ± 10 % 45mm
    T ± 10 % 49mm
    ∅H max. b 13mm
    ∅H min. a 27mm
    ∅J max. b 7mm
    ∅J min. a 13mm
    ∅J/K/L/N max. b 7mm
    ∅J/K/L/N min. a 13mm
    ∅K max. b 7mm
    ∅K min. a 13mm
    Dielectric Strength 15kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Nato number 5970-99-117-0962
    Operating Temperature -50 °C to +80 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    GTIN-13 / EAN 5022660461217
    UNSPSC Key 39121721
