4-Way Outlet Shapes, Breakout Boots
Art.-No. 404-35004 | 435-2-B7-PO-X-BK 세부

Application Cable breakouts are manufactured from a tough cross-linked flame retarded polyolefin. This allows the breakouts to be used for both interior and exterior applications. The adhesive liner offers excellent electrical and mechanical protection and are available for 2, 3, 4, 5 and 6 core cables.
Application Tool H6100, E4500, CHG900
Colour Black (BK)
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 435-2-B7-PO-X-BK
Pack Content 1pc.
Package Content packed in bag
Product Family Helashrink 400 Series, in line, low voltage
Product Group 4-Way Outlet Shapes, Breakout Boots
Shrink Ratio up to 3:1
Type 435-2-B7
Variant For 4-core cables
Flexibility semi rigid

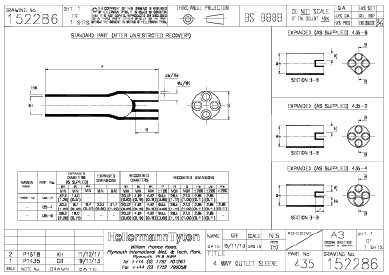

HW ± 20 % 2.9mm
JW ± 20 % 2.9mm
P ± 10 % 93.5mm
R nom. 28.5mm
R ± 10 % 28.5mm
S nom. 27mm
∅H max. b 20.3mm
∅H min. a 32mm
∅J max. b 4.8mm
∅J min. a 13mm
∅K max. b 4.82mm
∅K min. a 13.0mm
Dielectric Strength 15kV/mm
Flammability ASTM D635
Min. Shrink Temperature - °C +135 °C
Operating Temperature -55 °C to +135 °C
ROHS compliant Yes
Specifications
Tensile Strength 13MPa
UNSPSC Key 39121721
