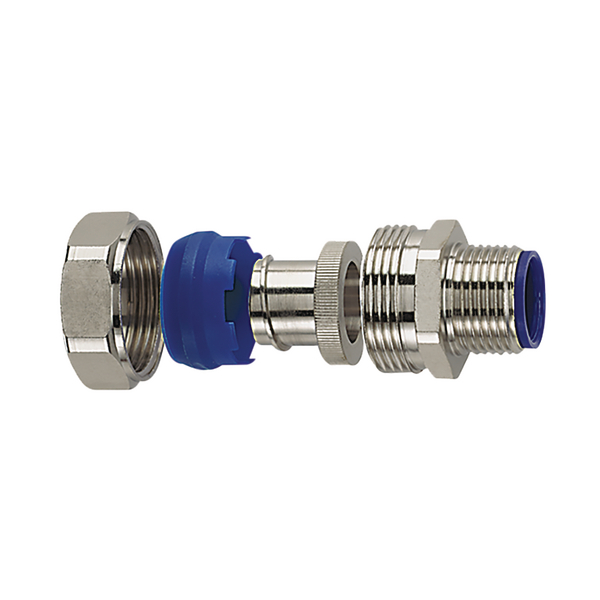

LTP32-M32-C-NPB/PA6-ML
Art.-No. 166-90611
| LTP32-M32-C-NPB/PA6-ML
|
세부
| Bore Diameter (Imperial) | 0.97" |
| Bore Diameter (metric) | 24.6 |
| Height (H) | 42.0mm |
| Length (L) | 46.8mm |
| Nominal ∅ | 1" |
| Nominal ∅ | 32.0mm |
| Thread Length (TL) | 16mm |
| Thread Length (TL) (Imperial) | 0.63" |
| Thread Size | M32 |
| Thread Size (Imperial) | 1 " |
| Wrenching Flat Size (Imperial) | 1.21" |
| Wrenching Flat Size (Metric) | 30.8mm |
다운로드
| CE Certification | No |
| CSA Certified | No |
| Halogen-free | Yes |
| IP-Rating | IP68 |
| Operating Temperature | -50 °C to +135 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | Yes |
| UL Listed (US and Canada) | Yes |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL-File Number | E247502 |
| UV-Stabilised | No |
