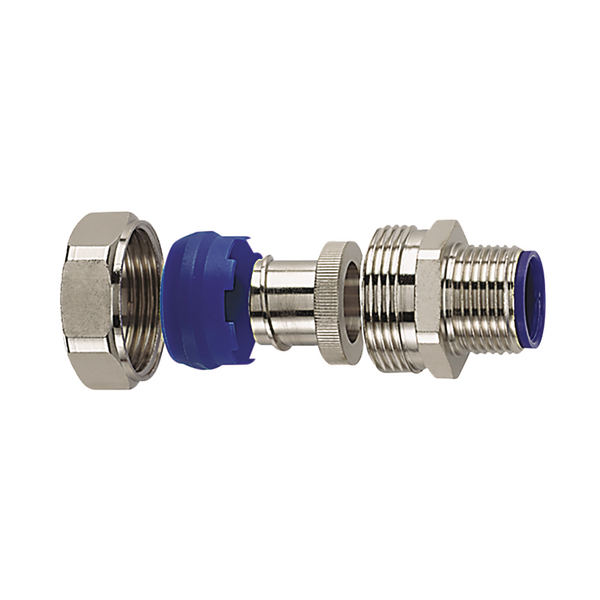

LTP40-M40-C-NPB/PA6-ML
Art.-No. 166-90612 | LTP40-M40-C-NPB/PA6-ML | 세부

Base Data

Colour	Metal (ML)
Material	Nickel Plated Brass (NPB), Polyamide 6 (PA6)
PART DESCRIPTION	LTP40-M40-C-NPB/PA6-ML
Pack Content	1pcs.
Package Content packed in	pack
Thread type	metric
Type	LTP40-M40-C
Variant	Straight

Product Dimensions

Bore Diameter (Imperial)	1.29"
Bore Diameter (metric)	32.7
Height (H)	52.0mm
Length (L)	47.5mm
Nominal ∅	1.25"
Nominal ∅	40.0mm
Thread Length (TL)	16mm
Thread Length (TL) (Imperial)	0.63"
Thread Size	M40
Thread Size (Imperial)	1-1/4 "
Wrenching Flat Size (Imperial)	1.24"
Wrenching Flat Size (Metric)	31.5mm

Downloads

Specifications

CE Certification	No
CSA Certified	No
Halogen-free	Yes
IP-Rating	IP68
Operating Temperature	-50 °C to +135 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	Yes
UL Listed (US and Canada)	Yes
UL Recognized (US and Canada)	No
UL Recognized (US)	No
UL-File Number	E247502
UV-Stabilised	No

Logistics and Packaging

GTIN-13 / EAN

4031026560724

More Information

UNSPSC Key

39131707
