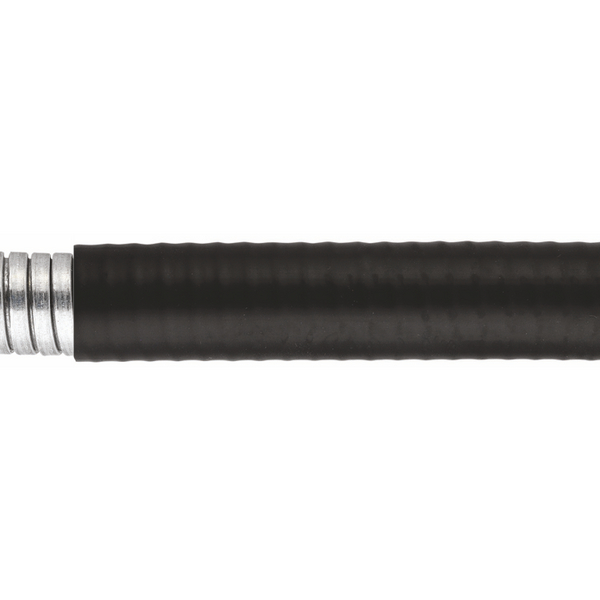

LTPHC25B-25M-GS/TPE-BK
Art.-No. 166-90709 | LTPHC25B-25M-GS/TPE-BK 세부

Colour Black (BK)
Material Galvanised Steel (GS), Thermoplastic Elastomer (TPE)
PART DESCRIPTION LTPHC25B-25M-GS/TPE-BK
Pack Content 25.0m
Package Content packed in reel
Type LTPHC25B-25M
Bending Radius min. (R) 100mm
Diameter (D) 21.0mm
Length (L) 25.0m
Nominal ∅ 0.75"
Nominal ∅ 25.0mm
Outside Ø (OD) 26.4mm
Outside ∅ (OD) 1.04"
Weight 503g/m
∅ D 0.83"
CSA Certified No
Flammability EN IEC 61386-1
Halogen-free Yes
Operating Temperature -60 °C to +150 °C
ROHS compliant Yes
Self extinguishing Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised No
GTIN-13 / EAN 4031026562223
Packaging 1 - Weight (kg) 12.58kg
Reel Length 82.0ft
Reel Length 25.0m
UNSPSC Key 39131706
