Galvanised Steel Conduit 50m
Art.-No. 166-30119 | SC20-GS-ML |  세부

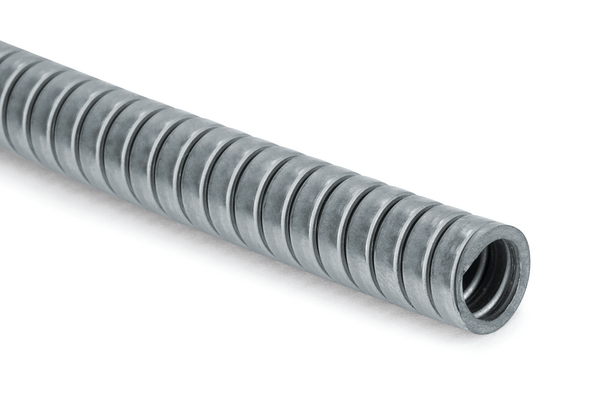

HelaGuard SC - Flexible Galvanized Steel Conduit.

    • High compression, tensile and impact strength
    • Very flexible
    Downloads

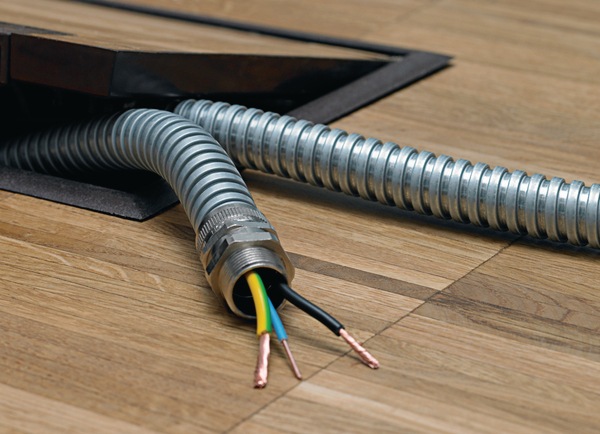

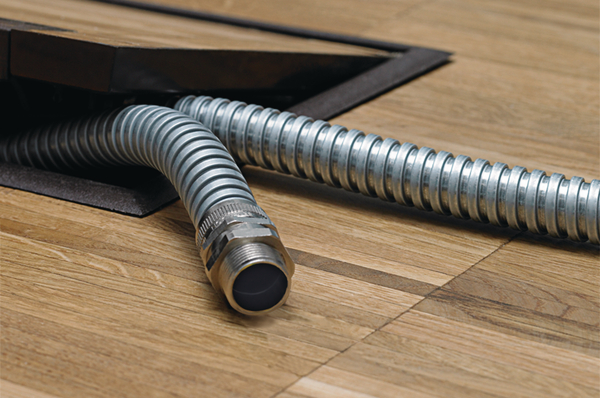

    Application General purpose flexible steel conduit offers high mechanical protection and is typically used in machines, plants, underfloor wiring, data cabling and protection of hydraulic or pneumatic hoses.
    Colour Metal (ML)
    Material Galvanised Steel (GS)
    PART DESCRIPTION SC20-GS-ML
    Pack Content 50m
    Package Content packed in reel
    Product Family SC Galvanised steel conduit
    Product Group Metallic conduits
    Type SC20

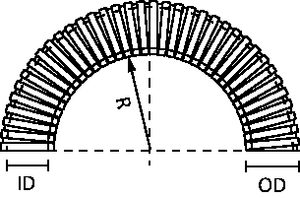

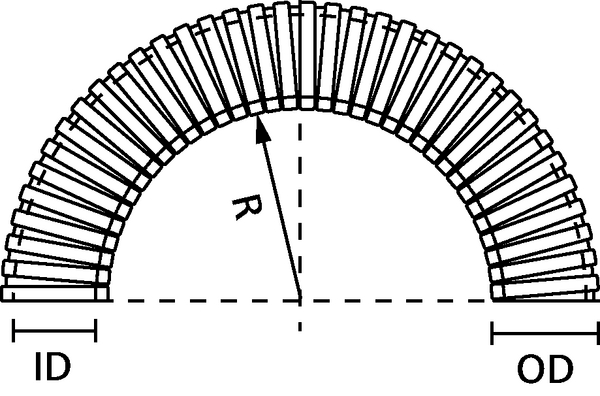

    Bending Radius min. (R) 45mm
    Diameter (D) 16.8mm
    Inside Ø (ID) 16.9mm
    Length (L) 25m
    Nominal ∅ 0.81"
    Nominal ∅ 20mm
    Outside Ø (OD) 20.6mm
    Weight 295g/m
    CE Certification Yes
    ELV compliant (Article 4 - 2) YES
    EN61386 Classification 44564040410
    Electrical characteristics Not specified
    Halogen-free Yes
    Hazardous Goods No
    IP-Rating IP40
    Operating Temperature -100 °C to +300 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026328676
    Packaging 1 - Height (m) 0.21m
    Packaging 1 - Length (m) 0.403m
    Packaging 1 - Qty 50
    Packaging 1 - Type reel
    Packaging 1 - Volume (m³) 0.03411m³
    Packaging 1 - Weight (kg) 15.0kg
    Packaging 1 - Width (m) 0.403m
    Reel Length 50m
