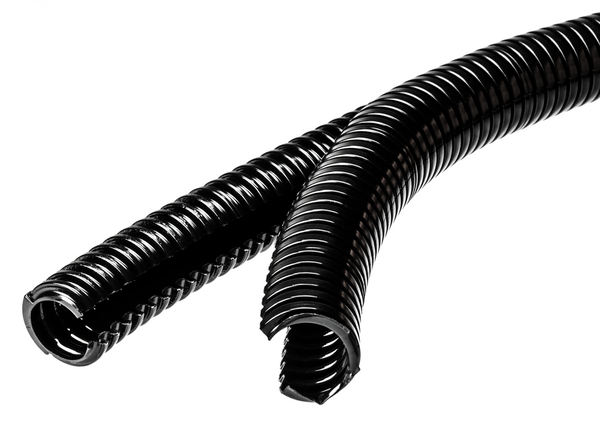

HG-DC1250-PA6-BK
Art.-No. 166-11812 | HG-DC1250-PA6-BK | 세부

Double-slit conduit diameters

Base Data

Colour	Black (BK)
Material	Polyamide 6 (PA6)
PART DESCRIPTION	HG-DC1250-PA6-BK
Pack Content	25m
Package Content packed in	reel
Pitch Type	coarse
Type	HG-DC1250

Product Dimensions

Bending Radius min. (BR)	7.88"
Bending Radius min. (R)	200mm
Inner Diameter D (Imperial)	1.26"
Inside Ø (ID)	32mm
Length (L)	25m
NW ∅	36mm
Nominal ∅	1.25"
Nominal ∅	42mm
Outside Ø (OD)	42.5mm
Outside ∅ (OD)	1.68"

Downloads

Specifications

CE Certification	No
CSA Certified	No
Flammability	EN IEC 61386
Halogen-free	Yes
Operating Temperature	-40 °C to +120 °C
ROHS compliant	Yes
Self extinguishing	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US and Canada)	No
UL Recognized (US and Canada)	No
UL Recognized (US and Canada)	No
UV-Stabilised	No

Logistics and Packaging

GTIN-13 / EAN

4031026490465

More Information

UNSPSC Key

39131601
