Standard weight conduit PP ø13mm reel 50m
Art.-No. 166-11901 | HG-PP13-PP-BK |  세부

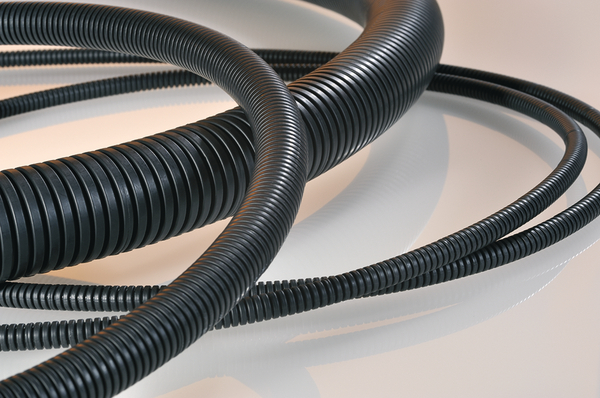

HelaGuard HG-PP - Standard Weight Polypropylen Corrugated Tubing.

    • Very flexible
    • Abrasion resistant
    • Resistant to acids and alkalis
    • Self-extinguishing to IEC 61386
    Downloads CAD-Download
    Application Standard weight conduit made of Polypropylen is used in machine building, electrical installations and buildings, often in concrete or plaster.
    Colour Black (BK)
    Material Polypropylene (PP)
    PART DESCRIPTION HG-PP13-PP-BK
    Pack Content 50m
    Pitch Type fine
    Product Family HG-PP PP Conduit
    Product Group Non-Metallic Conduits
    Type HG-PP13

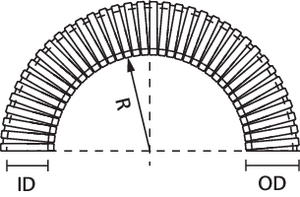

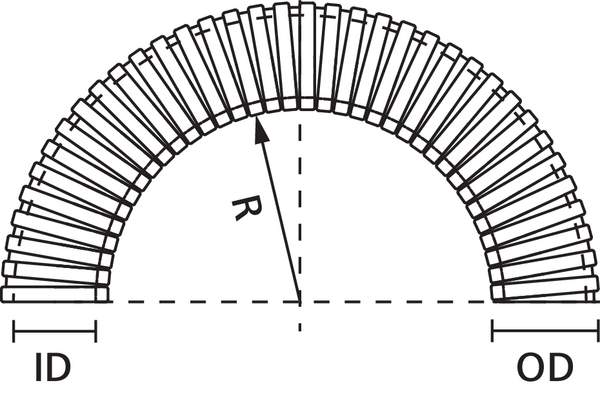

    Bending Radius min. (R) 25mm
    Diameter (D) 9.8mm
    Inside Ø (ID) 9.8mm
    NW ∅ 10mm
    Nominal ∅ 0.5"
    Nominal ∅ 13mm
    Outside Ø (OD) 13.0mm
    Weight 20g/m
    CE Certification Yes
    ELV compliant (Article 4 - 2) YES
    Flammability EN IEC 61386
    Hazardous Goods No
    IP-Rating IP66 (in conjunction with HG fittings)
    Oil resistant Yes
    Operating Temperature -20 °C to +90 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    GTIN-13 / EAN 4031026325446
    Packaging 1 - Height (m) 0.15m
    Packaging 1 - Length (m) 0.35m
    Packaging 1 - Qty 50
    Packaging 1 - Type reel
    Packaging 1 - Volume (m³) 0.01838m³
    Packaging 1 - Weight (kg) 1.06kg
    Packaging 1 - Width (m) 0.35m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Type pallet
    Packaging 4 - Width (m) 0.8m
    Reel Length 50m
