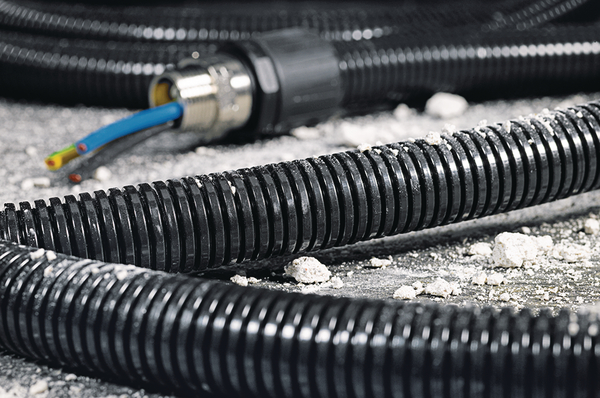

Standard weight corrugated flexible conduit PA6 ND=13mm reel 50m, grey
Art.-No. 166-11121
| HG-SW13-PA6-GY
|
세부
- Very flexible and high fatigue life
- Very abrasion resistant
- High impact strength, recovers if crushed
- Highly resistant to solvents and oils
- Free of halogen, sulphur and phosphorus
- Self-extinguishing according to UL94 V2
- Colour: black, grey on request
![](https://www.hellermanntyton.com/shared/speclogos/99593_All_Languages.jpg)
![](https://www.hellermanntyton.com/shared/speclogos/99595_All_Languages.jpg)
![](https://www.hellermanntyton.com/shared/speclogos/855898_All_Languages.jpg)
![](https://www.hellermanntyton.com/shared/speclogos/844489_All_Languages.jpg)
More products in this product group:
Application | Standard weight corrugated flexible conduit for industrial applications, including machine building, plant construction, control panels, public buildings. |
Application Tool | CONCUTTER1, CONCUTTER2 |
Colour | Grey (GY) |
Conduit Model | Plastic corrugated |
Material | Polyamide 6 (PA6) |
PART DESCRIPTION | HG-SW13-PA6-GY |
Pack Content | 50m |
Package Content packed in | reel |
Pitch Type | fine |
Product Family | HG-SW PA6 Standard Weight |
Product Group | Non-metallic conduits |
Type | HG-SW13 |
CE Certification | Yes |
ELV compliant (Article 4 - 2) | YES |
EN61386 Classification | 24244066-110 |
Flammability | UL 94 V2 |
Halogen-free | Yes |
IP-Rating | IP66 (in conjunction with HG fittings) |
Impact Strength |
|
Oil resistant | Yes |
Operating Temperature | -40 °C to +120 °C |
Operating Temperature Moving | -20 °C to +100 °C |
Oxygen index | 26.4% |
ROHS compliant | Yes |
Specifications |
![]() ![]() ![]() ![]() |
Specifications | ANSI/UL 1696, BS EN 61386-23, csa-C22.2 No.227.3 |
UL OCD link | Link Link Link Link |
UL Recognized (US and Canada) | Yes |
