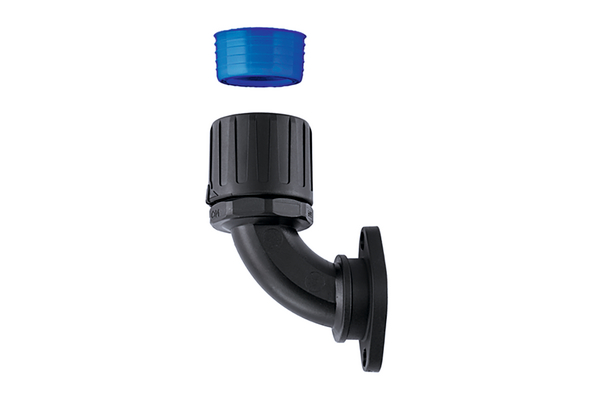

Elbow Fitting 90° with Swivel Flange IP68 ø21mm
Art.-No. 166-23001 | HGL21-90FL-PA66/TPE-BK |  세부

HelaGuard HGL-90FL 90° Elbow Swivel Flange, IP68.

    • One piece, fast fit
    • High pull-off strength
    • Highly resistant to solvents and oils
    • Free of halogen, sulphur and phosphorus
    Downloads CAD-Download
    Application 90° elbow swivel flange with conduit seal and washer. Fulfils IP66, IP67, IP68 and IP69k.
    Brass Thread (Y/N) No
    Colour Black (BK)
    Material Polyamide 6.6 (PA66), Thermoplastic Elastomer (TPE)
    PART DESCRIPTION HGL21-90FL-PA66/TPE-BK
    Pack Content 10pcs.
    Package Content packed in bag
    Product Family HGL-90FL 90° Elbow fitting, IP68
    Product Group Fittings with swivel flange
    Strain Relief Function (Y/N) No
    Swivel Thread (Y/N) No
    Thread type not applicable
    Type HGL21-90FL
    Type of connection Snap-connection
    Variant 90°-elbow
    Angle 90

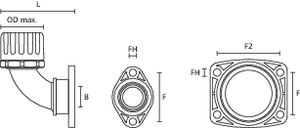

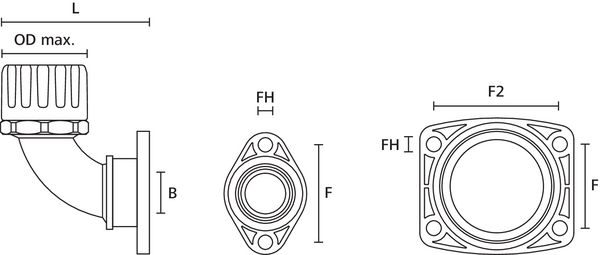

    Fixing Hole Centres (F) 36.0mm
    Length (L) 53mm
    Lowest inner diameter 14mm
    Min. Bore Size (B) 14.0mm
    NW ∅ 17mm
    Nominal ∅ 0.81"
    Nominal ∅ 21mm
    Outside ∅ max (OD max.) 34mm
    for Hole ∅ (FH) 5.2 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Halogen-free Yes
    Hazardous Goods No
    IP-Rating IP66, IP67, IP68, IP69k
    Operating Temperature -50 °C to +135 °C
    ROHS compliant Yes
    Specifications
    Specifications UL-Recognized
    GTIN-13 / EAN 4031026304632
    Packaging 1 - Height (m) 0.032m
    Packaging 1 - Length (m) 0.3m
    Packaging 1 - Qty 10
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00154m³
    Packaging 1 - Weight (kg) 0.258001kg
    Packaging 1 - Width (m) 0.16m
