18/12/2024

Helawrap cable cover
Art.-No. 161-64217 | HWPP16-PP-WH |  세부

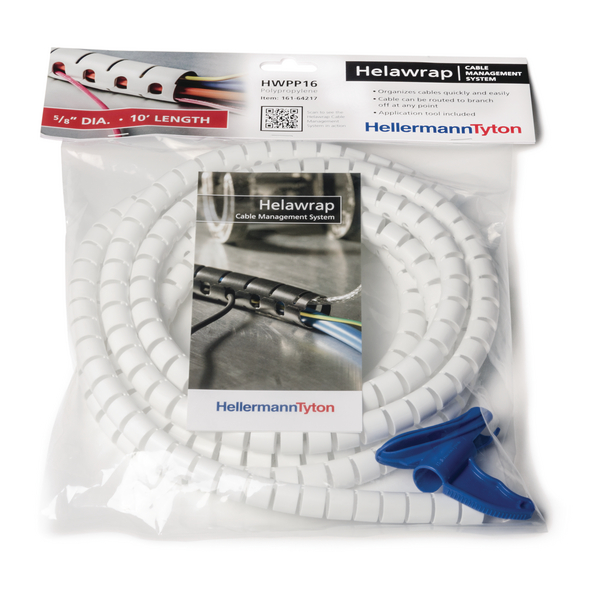

Helawrap convenience pack includes 10 ft. of Helawrap, along with an application tool.

    • Ideal solution for bundling, protecting and fixing cables
    • Quick and effortless to apply
    • Good abrasion protection
    • Special profile enables branching off cable at any point
    • Can be removed and reapplied often
    • Available in several colours and sizes
    • Handy HAT applicator tool included
    Show more
    Downloads
    Application Helawrap is used to bundle and protect cables and wires in the electrical industry, panel building, machine building and many other industrial applications. Helawrap is the time-saving solution for industrial applications.
    Colour White (WH)
    Material Polypropylene (PP)
    PART DESCRIPTION HWPP16-PP-WH
    Pack Content 3.05m
    Package Content packed in bag
    Product Family HWPP in polypropylene
    Product Group Helawrap cable cover
    Type HWPP16
    Variant Spiral Binding
    Bundle Diameter max (metric) 16.0mm
    Bundle ∅ min. 12.95mm
    Diameter (D) 12.70mm
    Length (L) 3.05m
    Nominal ∅ 0.63"
    Nominal ∅ 16.0mm
    Pitch (P) 0.51"
    Pitch (P) 12.95mm
    Wall (WT) 0.75mm
    Wall (WT) 0.03"
    ∅ D 0.5"
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Intermittent Operating Temperature +140°C
    Melting Point +284 °F (+140 °C)
    Operating Temperature -60 °C to +110 °C, intermittent +140 °C
    ROHS compliant Yes
    Specifications
    Specifications ECE R-118-03 Abschnitt 6 / Annex 6
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    GTIN-13 / EAN 4031026486161
    Packaging 1 - Weight (kg) 0.12kg
    Reel Length 10.0ft
    Reel Length 3.05m
    UNSPSC Key 39131604
    케이블 랩, 스파이럴 랩 케이블 랩, 스파이럴 랩

    Cable wraps, spiral wraps

    사무용 일반 스파이럴 호스, 난연 스파이럴 케이블 랩, 산업용 내열 / 내화학성 케이블 랩 등 다양한 포트폴리오를 확인하십시오.

    Cable wraps >
    Art.-No.: 161-64217 세부 문의
