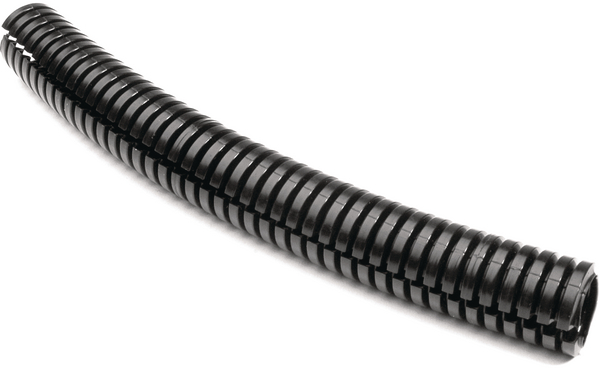

Convoluted Tubing
Art.-No. 169-60022 | CTN140-PA6-BK |  세부

Tubing protects cables and wires against automotive fluids, vibration wear.

    • Durable tubing provides protection of wire harness from friction, vibration, fraying and puncture
    • Tubing protects cables and wires against automotive fluids, vibration wear
    • Weather resistant material provides protection against water, snow, ice, and the effects of heat, cold, and sunlight
    Downloads
    Colour Black with Grey Stripe (BKSTGY)
    Description HellermannTyton’s Convoluted Tubing, also known at Split Loom Tubing, provides an efficient method of routing and protecting wire harness assemblies, while reducing the chance of installation damage. With a split down the side where you can insert your wire harness, you can just easily install Convoluted Tubing without removal of the entire assembly. It can also serve to protect valuable hoses and cables. Convoluted tubing offer’s excellent protection against vibration wear, water, snow, ice and the effects of heat, cold and sunlight on cables and wires.
    Material Polyamide 6 (PA6)
    PART DESCRIPTION CTN140-PA6-BK
    Pack Content 30.48m
    Package Content packed in box
    Product Group Convoluted Tubing
    Type CTN140
    Variant Slit
    Diameter (D) 10.11mm
    Inner Diameter D (Imperial) 0.276"
    Inside Ø (ID) 7.01mm
    Length (L) 30.5m
    Nominal ∅ 0.25"
    Nominal ∅ 6.35mm
    Outside Ø (OD) 10.11mm
    Outside ∅ (OD) 0.398"
    Outside ∅ (OD2) 0.398"
    Outside ∅ (OD2) 10.11mm
    Wall (WT) 0.102mm
    Wall (WT) 0.004"
    ∅ (D2) 7.01mm
    ∅ D 0.398"
    ∅ D2 0.276"
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free No
    Operating Temperature -40 °C to +125 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    GTIN-13 / EAN 4031026669724
    UNSPSC Key 39131601
