FTLS-PET-WH
Art.-No. 596-97004 | FTLS-PET-WH | 세부

Notched score line for error-free, single-finger folding.

Base Data

Colour	White gloss (GSWH)
Material	Polyester (PET)
PART DESCRIPTION	FTLS-PET-WH
Pack Content	2400
Package Content packed in	reel
Type	FTLS

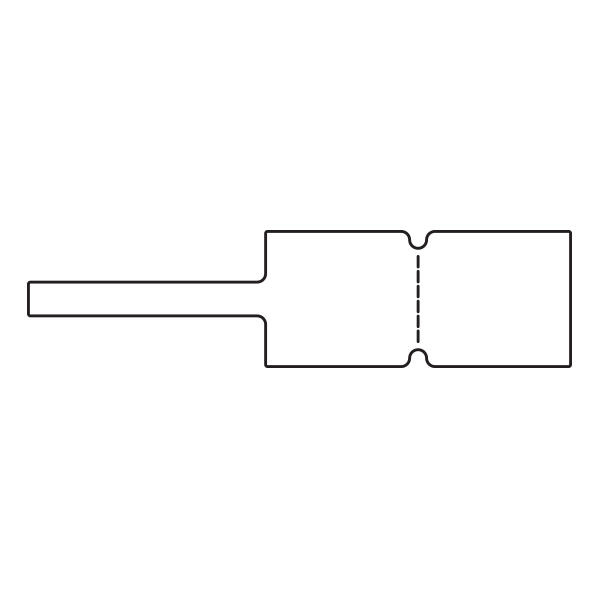

Product Dimensions

For AWG	2/0
H printable	25.4mm
HR	.25"
HR	6.35mm
Height (H)	44.5mm
Height (H2)	57.15mm
Height (H3)	101.6mm
Max. Wire Size (in²)	.375"
Print Method	laser print
Thickness (T)	64.0µm
VR	1.25"
VR	31.75mm
Width (W)	25.4mm
Width (W2)	0.25"
Width (W2)	6.35mm
Width of LIner (WL)	8.5"
Width of Liner (WL)	215.9mm
Width of printable area	28.44mm

Downloads

RoHS datasheet

다운로드

Specifications

Adhesive	Acrylic
Adhesive Operating Temperature	-40 °C to +150 °C
CE Certification	No
CSA Certified	No
Curing Temperature	+10 °C
Max. Print Width	215.9mm
Operating Temperature	-40 °C to +150 °C
ROHS compliant	Yes
Specifications
UV-Stabilised	No

Logistics and Packaging

GTIN-13 / EAN	4031026659909
Labels per Column	8
Labels per Row	2
Labels per Sheet	16
Packaging 1 - Height (m)	0.044m
Packaging 1 - Length (m)	0.279m
Packaging 1 - Volume (m³)	0.00265m³
Packaging 1 - Weight (kg)	0.45kg
Packaging 1 - Width (m)	0.216m

More Information

UNSPSC Key

55121606
