26/12/2024

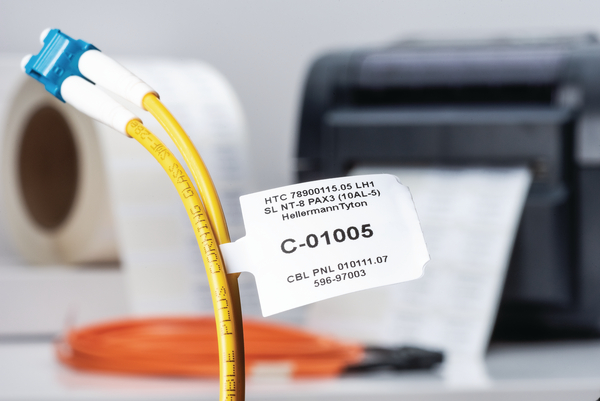

Label, white, thermal transfer print, 44.5x25.4mm, H2=57.15mm, 2400
Art.-No. 596-97003 | FTTT-PET-WH 세부

Colour White gloss (GSWH)
Material Polyester (PET)
PART DESCRIPTION FTTT-PET-WH
Pack Content 2400
Package Content packed in pack
Type FTTT
For AWG 2/0
H printable 25.4mm
HR .125"
HR 3.17mm
Height (H) 44.5mm
Height (H2) 57.15mm
Height (H3) 101.6mm
Max. Wire Size (in²) .375"
Print Method thermal transfer print
Thickness (T) 64.0µm
VR 1.125"
VR 28.57mm
Width (W) 25.4mm
Width (W2) 0.25"
Width (W2) 6.35mm
Width of LIner (WL) 4.0"
Width of Liner (WL) 101.6mm
Width of printable area 28.44mm
Adhesive Acrylic
Adhesive Operating Temperature -40 °C to +150 °C
CE Certification No
CSA Certified No
Curing Temperature +10 °C
Max. Print Width 28.4mm
Operating Temperature -40 °C to +150 °C
ROHS compliant Yes
Specifications
UV-Stabilised No
GTIN-13 / EAN 4031026659893
Labels per Column 1
Labels per Row 1
Packaging 1 - Height (m) 0.102m
Packaging 1 - Length (m) 0.14m
Packaging 1 - Volume (m³) 0.002
Packaging 1 - Weight (kg) 0.45kg
Packaging 1 - Width (m) 0.14m
UNSPSC Key 55121606
