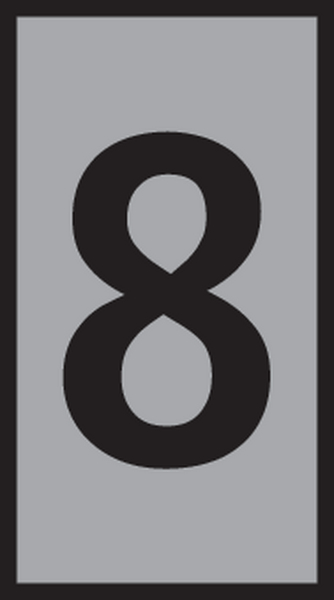

Cable marker, hotfoil print "8", ∅1.8-6.3mm, grey, reel=1000pcs.
Art.-No. 531-07736 | HODS85 8-PVC-GY |  세부

A simple idea for complex marking needs.

    • Oval shaped markers designed to fit AT1, AT2 or AT3 (depends on Ovalgrip size)
    • Ideal for use in maintenance and repair and fixed with cable ties
    • Direct application to wire and cable before termination is also recommended
    Downloads
    Application Markers are available as a standard in yellow material marked in black, and international resistor colour code. Characters are 0-9, A-Z, and standard electrical symbols. White material marked in black available on special request. AT1 Arrowtags will fit 7 size 50 markers. AT2 Arrowtags will fit 8 size 85 markers. AT3 Arrowtags will fit 14 size 85 markers.
    Colour Grey (GY)
    Colour of Print Black (BK)
    Fixation Method Suspend
    For Size AT2/AT3
    Marking Text 8
    Material Flexible Polyvinyl Chloride, cadmium free (PVC)
    PART DESCRIPTION HODS85 8-PVC-GY
    Pack Content 1000pcs.
    Package Content packed in reel
    Product Family Ovalgrip, slide on, straight cut, HODS85
    Product Group Pre-printed cable markers
    Type HODS85 8
    Variant Roller form
    With label space No
    Bundle Diameter max (metric) 6.3mm
    Bundle ∅ min. 1.8mm
    Length (L) 4.5mm
    Outside ∅ max. .248"
    Outside ∅ min. .070"
    Print Method hotfoil print
    Width (W) 11.50mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V0 (3 mm)
    Hazardous Goods No
    Operating Temperature -65 °C to +105 °C, intermittent +135 °C
    Pre-Printed Yes
    ROHS compliant Yes
    Specifications
    Specifications BS-2782-540B, BS-6746C, IEC 304, IEC 757
    GTIN-13 / EAN 5022660047077
    Packaging 1 - Height (m) 0.014m
    Packaging 1 - Length (m) 0.16m
    Packaging 1 - Qty 1000
    Packaging 1 - Type reel
    Packaging 1 - Volume (m³) 0.00036m³
    Packaging 1 - Weight (kg) 0.2kg
    Packaging 1 - Width (m) 0.16m
    Packaging 2 - Height (m) 0.216m
    Packaging 2 - Length (m) 0.3048m
    Packaging 2 - Qty 4000
    Packaging 2 - Type carton
    Packaging 2 - Volume (m³) 0.0176m³
    Packaging 2 - Weight (kg) 0.88kg
    Packaging 2 - Width (m) 0.267m
