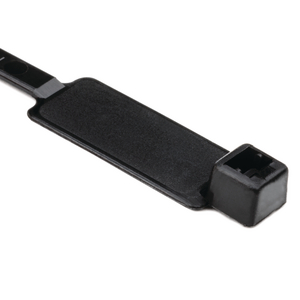

Cable Tie with Marker Plate 110x2.5 natural
Art.-No. 111-81919
| IT18FL-PA66-NA
|
세부
- Identification ties made of Polyamide 6.6
- For simple identification and securing of cable bundles in one step
- Printable labels are available for a professional finish
- Manual or temporary marking is possible with an indelible pen (T82S-BK / T82R-RD)
More products in this product group:
| Application | One of the major benefits is the ability to both secure and identify cable bundles at different times. |
| Colour | Natural (NA) |
| Fixation Method | None |
| Identification Plate Position | stands of bundle |
| Material | Polyamide 6.6 (PA66) |
| PART DESCRIPTION | IT18FL-PA66-NA |
| Pack Content | 100pcs. |
| Package Content packed in | bag |
| Product Family | IT Ties |
| Product Group | Identification ties and plates for marking cable bundles |
| Recommended Labels | TAG18-07TD1 |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | IT18FL |
| Variant | Inside Serrated |
| With label space | Yes |
|
|
| Bundle Diameter max (metric) | 19.0mm |
| Bundle ∅ min. | 1.5mm |
| Height (H) | 9.0mm |
| Length (L) | 110.0mm |
| Min.Tensile Strength | 80N |
| Outside ∅ max (OD max.) | 19.00mm |
| Outside ∅ max. | 0.75" |
| Outside ∅ min. | 0.059" |
| Outside ∅ min. (OD min.) | 1.50mm |
| Print Method | manual marking |
| Width (W) | 20.5mm |
| Width (W2) | 0.1" |
| Width (W2) | 2.5mm |
다운로드
| CE Certification | Yes |
| CSA Certified | Yes |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | ANSI/UL 62275, csa-C22.2 no. 62275 |
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US and Canada) | Yes |
| UL Type | 11 |
| UL-File Number | E64139 |
| UV-Stabilised | No |
|
|
|
| GTIN-13 / EAN | 4031026107189 |
| Packaging 1 - Height (m) | 0.027m |
| Packaging 1 - Length (m) | 0.255m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00083m³ |
| Packaging 1 - Weight (kg) | 0.048201kg |
| Packaging 1 - Width (m) | 0.12m |
| Packaging 3 - Height (m) | 0.20002499999999998m |
| Packaging 3 - Length (m) | 0.51117499999999995m |
| Packaging 3 - Qty | 10000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0318m³ |
| Packaging 3 - Weight (kg) | 6.08kg |
| Packaging 3 - Width (m) | 0.31115m |
| Packaging 4 - Height (m) | 1.22m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 200000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.171m³ |
| Packaging 4 - Weight (kg) | 129.6kg |
| Packaging 4 - Width (m) | 0.8m |
