One touch marker clip
Art.-No. 151-01586 | MC5-PA66-NA 세부

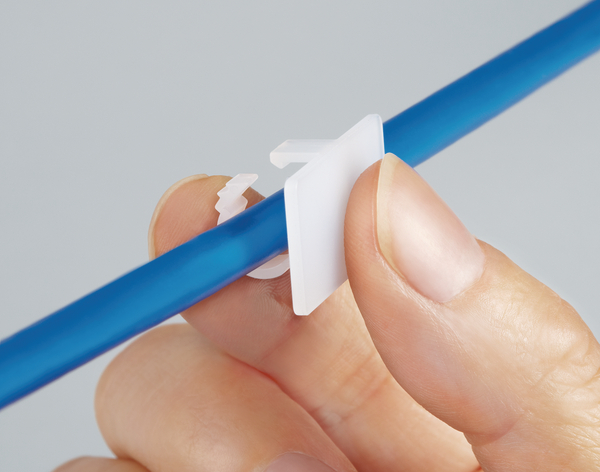

  • Enables securing using one touch and can be removed and reused after mounting.

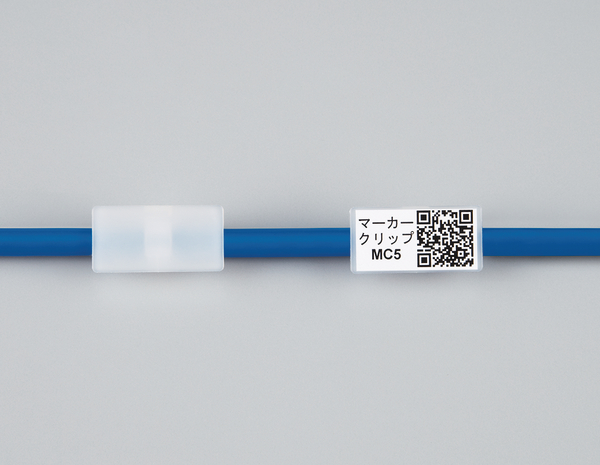

Application Used for classification of wires, indication, and identification.
Colour Natural (NA)
Material Polyamide 6.6 (PA66)
PART DESCRIPTION MC5-PA66-NA
Pack Content 100pcs.
Package Content packed in bag
Product Family MC Series
Product Group One touch marker clip
Releasable Closure (Yes/No) Yes
Type MC5

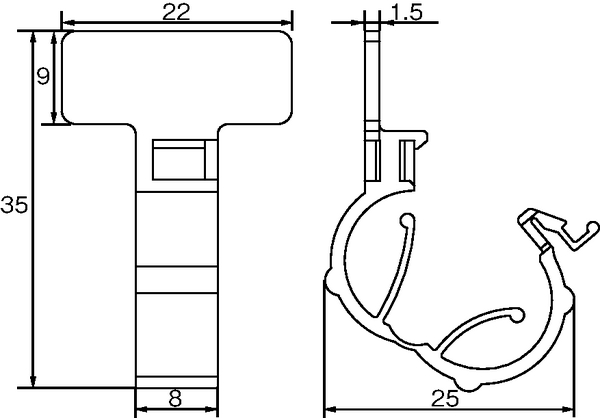

Bundle Diameter max (metric) 6.0mm
Bundle ∅ min. 5.1mm
H printable 13mm
Height (H) 13.1mm
Width (W) 26mm
Width of printable area 26mm
Flammability UL 94 V2
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
GTIN-13 / EAN 4944387113655
