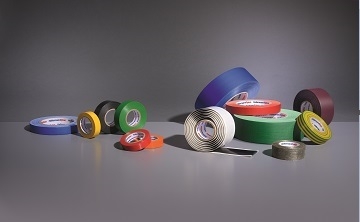

Electrical tape for professionals: the broad range of HelaTape

With HelaTape, HellermannTyton offers engineers, designers and electricians a wide range of PVC- and rubber-based electrical tapes that are ideal for insulating, attaching, bundling, sealing and marking cables. Our colored electrical tape in different sizes and materials supports the professional use of the tapes in a wide variety of areas: whether as a fast help for repairing cables, as a tool for sealing connection points, as a visual warning for provisionally laid cables or as a clearly visible cable marker – HellermannTyton tapes have many applications.

This is also reflected in the wide range of adhesive tapes: traditional insulation tape, conductive tapes for shielding, arc and fireproofing tapes, self-amalgamating tapes, as well as textile tapes all belong to the HelaTape family. The types of electrical tape are characterised by different mechanical properties, such as high tensile strength and abrasion resistance, electromagnetic properties, or air- and water-tight seals. This diversity allows the HelaTape family to fulfil most demands.

The use of high-quality insulating tapes provides optimum protection against dust, UV radiation, moisture, dirt, acids, alkalis and solvents, and is possible in a broad range of temperatures. It is tough to beat the efficiency, speed, durability and safety of taping, sealing and padding work. Various certifications vouch for the high quality of HellermannTyton electrical tapes.

Based on a vinyl film and coated with a balanced combination of high quality rubber-adhesives, HelaTape Flex is characterised by excellent performance and durability. The PVC tapes can be used for insulation, protection, bundling, maintenance, colour coding and many other applications. The range also includes premium tapes with excellent all-weather characteristics and superior performance in cold conditions.

This tape is used for rebuilding strand and insulation shields on high-voltage splices and for shielding all types of electrical connections. The special knit design allows easy application and provides good electromagnetic shielding.

HelaTape Power 410 is an unsupported, liner less, elastomeric tape which offers superior arc and flame resistance. It creates a thermally insulating residue when exposed to fire and is also water, chemical and UV resistant.

HelaTape 420 is a woven glass fabric tape with high tensile strength and abrasion resistance with a service temperature rating of 130°C.

HelaTape Power 600, 650, 800, 810, 820 and 900 are self-amalgamating rubber tapes without glue and are classified for low, medium and high voltage applications. Self-amalgamating tapes are used for air-tight and water-tight sealing.

HelaTape Tex cloth tapes are extremely strong in the longitudinal plane and are easy to tear with the fingers in the transverse direction. The range is ideal for protecting, marking, fixing, bundling, patching and repairing. HelaTape Tex is weather-resistant, water-repellent and can be removed residue-free, which is an important characteristic for stage and lighting construction, events and exhibitions.

• Polyvinyl chloride insulating tape in many different colours
• Used for insulation, protection, fixing, maintenance, colour coding and more
• Good resistance to abrasion, moisture, chemicals, and varying weather conditions
• Highly flexible with good adhesion level
• Harnessing of wires and cables
• Suitable for mechanical and electrical applications up to 1 kV
• Meets IEC 60454-3-1-5/F-PVCP/90 requirements
• Flame retardant

• Special high level adhesive
• Flame retardant
• Suitable for mechanical and electrical applications up to 1 kV
• Additional thickness for quicker layering and added abrasion resistance

• Special high level adhesive
• Flame retardant
• Suitable for mechanical and electrical applications up to 1 kV
• Additional thickness for quicker build-up and added abrasion resistance

• Particularly suitable for higher mechanical resistance
• Thickness in total 0.40 mm
• Very good for quicker layer build-up
• Special high level adhesive
• Flame retardant
• Suitable for mechanical and electrical applications up to 1 kV

• All-weather, professional grade, self-adhesive vinyl insulating tape
• Excellent performance and durability over wide temperature range from -18°C to +105°C
• Meets IEC 60454-3-1-11/F-PVCP/105 requirements
• Used for insulation, protection, fixing, maintenance, colour coding and more
• Pressure sensitive high quality rubber based adhesive
• Performs continuously at low temperature environment
• Excellent resistance to abrasion, moisture, chemicals, corrosion and UV exposure
• Primary electrical insulation for all wire and cable splices up to 1 kV
• Protective jacketing for low, medium and high voltage splices and repairs
• Harnessing of wires and cables
• For indoor and outdoor applications
• Flame retardant
• RoHS compliant

• All-weather, professional grade, self-adhesive vinyl insulating tape
  with higher thickness for more mechanical and electrical protection
• Pressure sensitive and aggressive high quality rubber based adhesive
• Performs continuously at low temperature environment
• Excellent resistance to abrasion, moisture, chemicals,
  corrosion and UV exposure
• Primary electrical insulation for all wire and cable splices up to 1 kV

• Special adhesive
• Excellent protection against corrosion
• Complete environmental, mechanical and electrical protection
• Highly resistant to UV, water, oil, most chemicals, bacteria and fungus
• Used for pipes, tubes, and conduits in outside and underground
  applications

• Self-amalgamating shielding tape made from ethylene propylene rubber
• Electrostatic shielding for high voltage splices and terminations
• Excellent conducting properties
• Prevents corona effect
• Moisture and UV-resistant and easy to apply


• Copper shielding braid, tin-plated
• Quick and easy to use due to copper knit-mesh design
• Excellent conformability
• Good electromagnetic properties
• Used for splices and terminations of shielded cables

• Unsupported, linerless, elastomeric tape
• Superior arc and flame resistance
• For cable protection in all type of applications
• Excellent flexibility and conformability for easy application
• Creates insulating residue when exposed to severe flame conditions
• Water, chemical and UV resistant

• Woven glass fabric tape with thermosetting rubber-based adhesive
• High tensile strength
• Excellent tear and abrasion resistance
• Operating temperature rating of 130°C

• Self-amalgamating tape for insulating and jacketing splices up to 69 kV
• Halogen-free with outstanding corona, ozone and UV-resistance
• Void-free, electrically stable layering
• Amalgamates quickly
• Protects bus bar components
• Excellent moisture, corrosion and chemical resistance
• Ideal moisture seal for water-proofing applications

• Ethylene rubber-based, high-voltage, linerless, self-bonding tape
• Excellent electrical, chemical and physical properties
• Building stress cones and jacketing of terminations, bus bars and joints
• High thermal conductivity
• Quicker application due to linerless design
• Uniform and void-free layering
• Excellent stretch to conform to the most complex shapes and contours
• Flame retardent and UV resistant and compatible with all extruded cable insulations

• Self-amalgamating low voltage rubber tape
• Primary insulation at not more than 1 kV
• Easily conforms to irregular shapes and surfaces
• Void-free electrically stable layering
• Compatible with all extruded dielectric cable insulations
• Recommended use in conjunction with HelaTape Flex for outer jacketing

• Self-amalgamating, low voltage insulating compound
• For quick, void-free insulation layering
• Easily moulded by hand to conform to irregular shapes
• Perfect adhesion to metal, all types of cable insulations and jackets
• Excellent thermal stability
• Provides excellent moisture seal
• Resistant to salt water, oil and corrosive chemicals
• Recommended use in conjunction with HelaTape Flex for outer jacketin

• Self-amalgamating, chemically cross-linked silicone rubber tape
• Triangular cross-section with centre line for precise half-overlapping
• Resistant to creepage and surface erosion
• Fuses into solid mass after application
• Weather, UV and Oil resistant
• No adhesive coating
• Recommended use for high temperature silicone insulated cables

• Ethylene rubber-based, high-voltage tape
• Superior electrical, chemical, mechanical and thermal properties
• Fuses quickly for void-free, electrically stable layering
• Insulating and jacketing splices on power cables up to 138 kV
• Building stress cones and termination jackets for cables up to 35 kV
• Outstanding corona, ozone, chemical and corrosion resistance
• Withstands UV and cable impregnants

• High quality PE-coated cloth tape with good weather resistance
• Total thickness of 0.31 mm for high tensile strength
• Highly tear-resistant in longitudinal direction
• Easy to tear-off by hand in transverse direction
• Matt surface finish for use in stage constructions and for exhibitions to avoid light reflections
• Useful for various applications like bundling, fixing, identification, marking and protection
• HelaTape Tex can be removed without residues due to high quality rubber based adhesive
