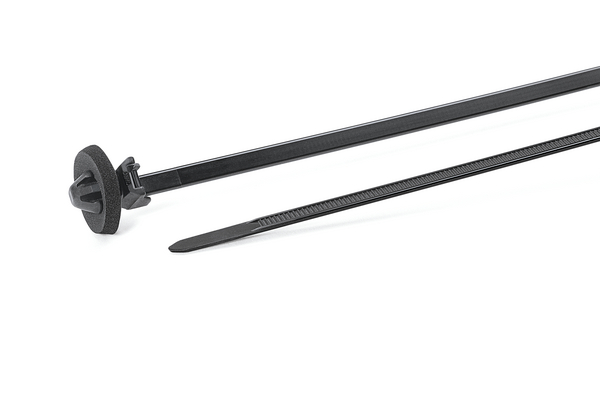

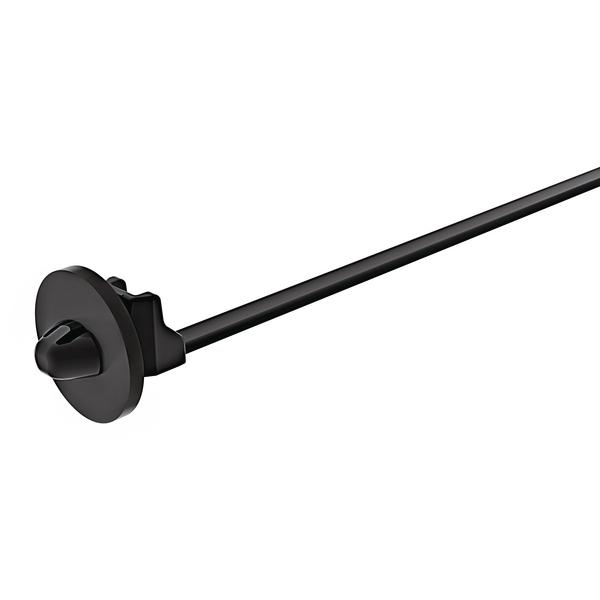

Fixing tie for hole (round), outside serrated, Ø1.5-30.0mm, black, 3500pcs.
Art.-No. 156-00264 | T50SOSSFT6.5E-MDL-PA66HS-BK |  Details

    • Easy to assemble without the need for a tool
    • Arrowhead simply locks into place
    • Disc adjusts the tie for pressures from various directions
    • Cable tie head always situated in defined position

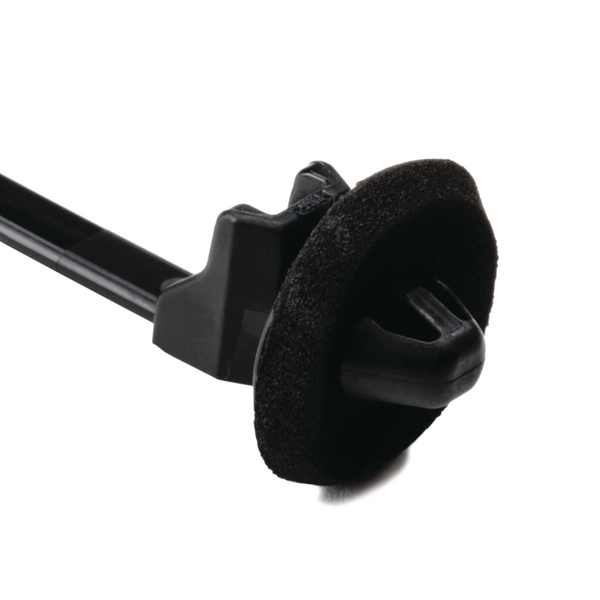

    • Cellular rubber seal minimises access of dust, dirt and water
    • T50SOSSFT6.5E-MD and T60SOSSFT6.5E-MD made from PA6.6 HS are tested acc. IEC60529 and fulfil IP67
    Show more
    Add to watchlist
    Downloads CAD-Download
    Application The parts are mainly used in the automotive industry, e.g. for door harnesses.
    Application Tool ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP
    Colour Black (BK)
    Fixation Method arrowhead
    Identification Plate Position none
    Key product features sealed
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T50SOSSFT6.5E-MDL-PA66HS-BK
    Pack Cont. 3500pcs.

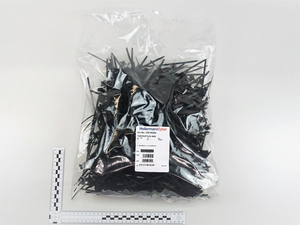

    Package Content packed in bag
    Product Family Fixing Ties, sealed, for Round Holes
    Product Group 1-Piece Fixing Ties with Arrowhead, with Disc, sealed
    Releasable Closure (Yes/No) No
    Short Description 1-Piece fixing tie 158.8x4.6 mm, with arrowhead, heat stabilised, black
    Tie Closure plastic pawl
    Type T50SOSSFT6.5E-MDL
    Variant Outside Serrated
    Bundle Diameter max (metric) 30.0mm
    Bundle ∅ 1.5-30.0mm
    Bundle ∅ min. 1.5mm
    Disc ∅ 16.0mm
    Height (H2) 16.0mm
    Length (L) 158.8mm
    Min.Tensile Strength 225N
    Panel Thickness max. 0.6 - 1.8mm
    Thickness (T) 1.3mm
    Weight/Unit 0.001566kg
    Width (W) 4.6mm
    for Hole ∅ (FH) 6.3 - 6.7 mm
    for Panel Thickness min - max 0.6 - 1.8 mm
    for Panel Thickness min - max 0 - 0.1 "
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026269931
    Packaging 1 - Height (m) 0.11m
    Packaging 1 - Length (m) 0.35m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01155m³
    Packaging 1 - Weight (kg) 0.850538kg
    Packaging 1 - Width (m) 0.3m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 3500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 6.773766kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 42000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 102.324kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
