20/05/2024

Cable tie inside serrated detectable, 250.0x4.6mm, Ø5.0-65.0mm, blue, 100pcs.
Art.-No. 115-00113 | MCTRELK2M-PA66MD-BU |  Details

    • Total metal dispersion throughout the tie

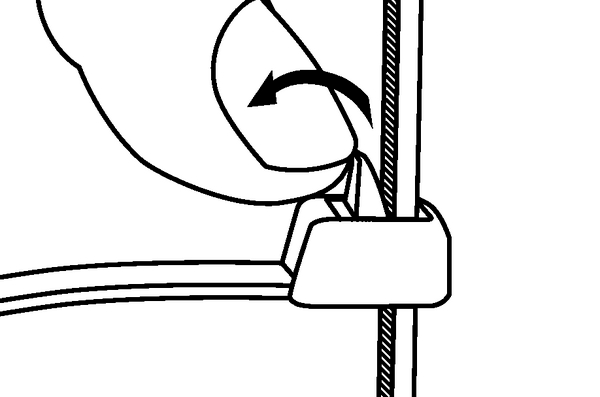

    • Can be reopened and reused
    • Supports quality processes around the production of food stuffs
    • Blue colour most common for easy visual detection
    • Greatly reduces risk of contamination
    • Magnetic detectable (detection level depending on specific application)
    Show more
    Add to watchlist
    Downloads Datasheet
    Application The Metal Content Tie is a cable tie specifically designed for use in the food and pharmaceutical processing industries. A unique manufacturing process, involving the inclusion of a metallic pigment, enables even small 'cut-off' sections of the tie to be detected by standard metal-detecting equipment. Ideally suited for the installaton of cabling in and around the manufacturing process. The MCTRELK ties do have a releasable function thus they can be reopened and reused.
    Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
    Colour Blue (BU)
    Fixation Method Releasable Cable Tie
    Identification Plate Position none
    Key product features detectable
    Material Polyamide 6.6, metal detectable (PA66MD)
    PART DESCRIPTION MCTRELK2M-PA66MD-BU
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family MCT-Series releasable, PA66MP
    Product Group Cable ties for food industry, detectable, reusable
    Releasable Closure (Yes/No) Yes
    Tie Closure plastic pawl
    Type MCTRELK2M
    Variant Inside Serrated
    Bundle Diameter max (metric) 65.0mm
    Bundle ∅ 5.0-65.0mm
    Bundle ∅ min. 5.0mm
    Length (L) 250.0mm
    Min.Tensile Strength 150N
    Thickness (T) 1.5mm
    Weight/Unit 0.0022kg
    Width (W) 4.6mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    Customs Number 39269097
    GTIN-13 / EAN 4944387104769
    Packaging 1 - Height (m) 0.03m
    Packaging 1 - Length (m) 0.36m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00162m³
    Packaging 1 - Weight (kg) 0.220001kg
    Packaging 1 - Width (m) 0.15m
    Packaging 3 - Height (m) 0.345m
    Packaging 3 - Length (m) 0.455m
    Packaging 3 - Qty 5000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0494m³
    Packaging 3 - Weight (kg) 11.44005kg
    Packaging 3 - Width (m) 0.315m
    Packaging 4 - Height (m) 1.179m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 60000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.132m³
    Packaging 4 - Weight (kg) 158.28kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
    Show all
