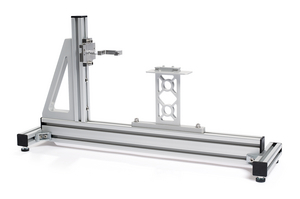

Accessory, Autotool, silver, 1pc. (Force measurement device with robot adapter CPK)
Артикулен 106-29011
| Force measurement device with robot adapter CPK-AL/ST-SR
|
Подробности

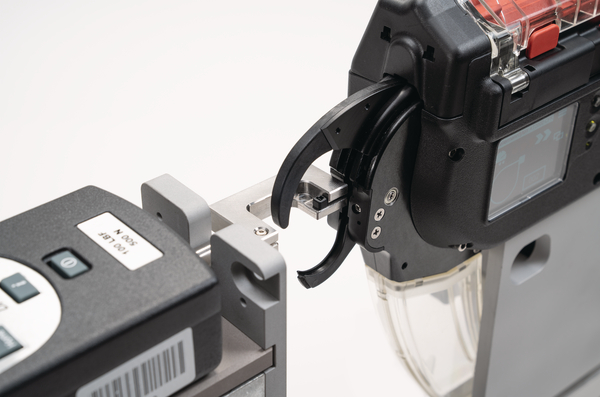

- Force measurement device CPK is used to measure the tensile force acting on the cable tie
- AT2000 CPK is attached with a robot adapter to the base frame
- Easy integration of the manual force measurement device and the AT2000 CPK (manual force measurement device is not included in the scope of delivery)
- Available with grip mount or robot adapter
- The measured tensile force is transmitted to the manual force measuring device
- The measured tensile force can be entered in the Software HT Data Management manually. The resulting documentation ensures reproducibility
Заявете вашата индивидуална оферта сега
Оферта
Още продукти от тази продуктова група:
| Application | The Autotool CPK hybrid T18RA is an automated cable tying system that is either operated electrically with a Power pack or with a battery. It has been developed to speed up bundling processes and to make the production more consistent and efficient. Besides the high speed bundling, this cable tying system is characterized by its simple operation and user-friendly ergonomics. The CPK hybrid offers a display for the settings and presets and user information in 20 languages. One main feature of the CPK hybrid is the software "HT Data Management CPK". This feature enables the easy parameterization of the tool for customers applications. The parameterization can easily be carried out via computer. Additionally the "HT Data Management CPK" offers an export function for the saved manufacturing data as well as further service functions. Therefore it ensures a consistent documentation for every binding process through the tool. The firmware of the CPK hybrid tool enables various bundling and cutting functions. It is possible to define a loop diameter and to choose the length of an extended strap as an example. The function to cut with the tension released is of great value especially for applications with a very flexible bundling good (like silicone cables). The CPK hybrid is ideally suited for handling high volume applications in wire harness facilities, automotive and industrial companies, in the packaging sector and in the solar industry. With either the Bench mount kit CPK or the Overhead suspension CPK, the CPK hybrid is suitable for both stationary and flexible applications. By using the optional Power pack CPK with control box the CPK hybrid can be integrated into fully automated production lines through a serial interface. Due to the removable handle less assembly space is needed. When using the battery at the bottom of the handle the tool can be used without the need for a power supply. Bandoliers of 50 cable ties as well as reels of 3,500 cable ties can be used. |
| Bench mount kit | Bench mount kit CPK with foot pedal operation |
| Colour | Silver (SR) |
| Description | Force measurement device with robot adapter CPK |
| For Ties | T18RA50, T18RA3500 |
| Material | Aluminium (AL), Steel (ST) |
| PART DESCRIPTION | Force measurement device with robot adapter CPK-AL/ST-SR |
| Pack Cont. | 1pc. |
| Package Content packed in | carton |
| Product Family | Force measurement device with robot adapter for Autotool 2000 CPK |
| Product Group | Automatic bundling up to Ø 20 mm |
| Short Description | Force measurement device with robot adapter CPK |
| Tool suitable cable tie material | Plastic |
| Type | Force measurement device with robot adapter CPK |
Изтегли
|
|
|
| Country of Origin | DE |
| Customs Number | 76169990 |
| GTIN-13 / EAN | 4031026569932 |
| Packaging 3 - Height (m) | 0.38m |
| Packaging 3 - Length (m) | 0.69m |
| Packaging 3 - Qty | 1 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.0564m³ |
| Packaging 3 - Weight (kg) | 3.602kg |
| Packaging 3 - Width (m) | 0.215m |
| Packaging 4 - Height (m) | 0.964m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 10 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 0.925m³ |
| Packaging 4 - Weight (kg) | 88.9kg |
| Packaging 4 - Width (m) | 0.8m |
