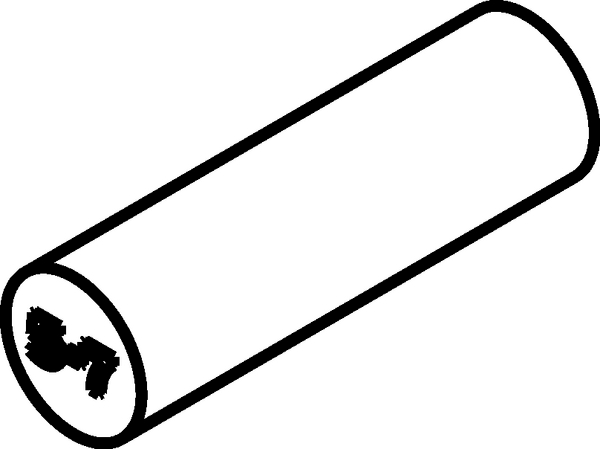

Cable entry system, Blindplug, 20.0mm, ∅5.0 - 7.0mm, black, 20pcs.
Артикулен 440-00042
| VP_5-7_Blindplug-PL-BK
|
Подробности
- Blind grommets are needed to replace the cable grommets that are not equipped with wires
- The IP protection class is retained
Заявете вашата индивидуална оферта сега
Оферта
Още продукти от тази продуктова група:
| Application | VarioPlate cable entry system inserts grommets are used in combination with VarioPlate frames for time and space saving cable installation on all types of panel builder housings and controll boxes. The versatile design covers cable diameter from 3 to 33mm. Inserts grommets are available in one, two, four holes and blindplugs. |
| Cable ∅ max | 7.0mm |
| Cable ∅ min | 5.0mm |
| Colour | Black (BK) |
| Description | VarioPlate Blindplug 5-7 mm |
| Material | Plastic (PL) |
| PART DESCRIPTION | VP_5-7_Blindplug-PL-BK |
| Pack Cont. | 20pcs. |
| Package Content packed in | bag |
| Product Family | VarioPlate Blindplug 5-7 mm |
| Product Group | VarioPlate Cable Entry System |
| Short Description | VarioPlate Blindplug 5-7 mm |
| Type | VP_5-7_Blindplug |
| Variant | Both sides open |
Изтегли
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026686332 |
| Packaging 1 - Height (m) | 0.005m |
| Packaging 1 - Length (m) | 0.19m |
| Packaging 1 - Qty | 20 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00011m³ |
| Packaging 1 - Weight (kg) | 0.0118kg |
| Packaging 1 - Width (m) | 0.12m |
| Packaging 2 - Height (m) | 0.216m |
| Packaging 2 - Length (m) | 0.3048m |
| Packaging 2 - Volume (m³) | 0.0176m³ |
| Packaging 2 - Width (m) | 0.267m |
